Dwyer Instruments HFT-2550 | In-line flow transmitter | Range 5-50 GPM (19-189 LPM) water | 1-1/2" female NPT

Name: Dwyer Instruments HFT-2550 | In-line flow transmitter | Range 5-50 GPM (19-189 LPM) water | 1-1/2" female NPT
Brand: Dwyer
SKU: HFT-2550
Availability: OutOfStock

Part Number : HFT-2550

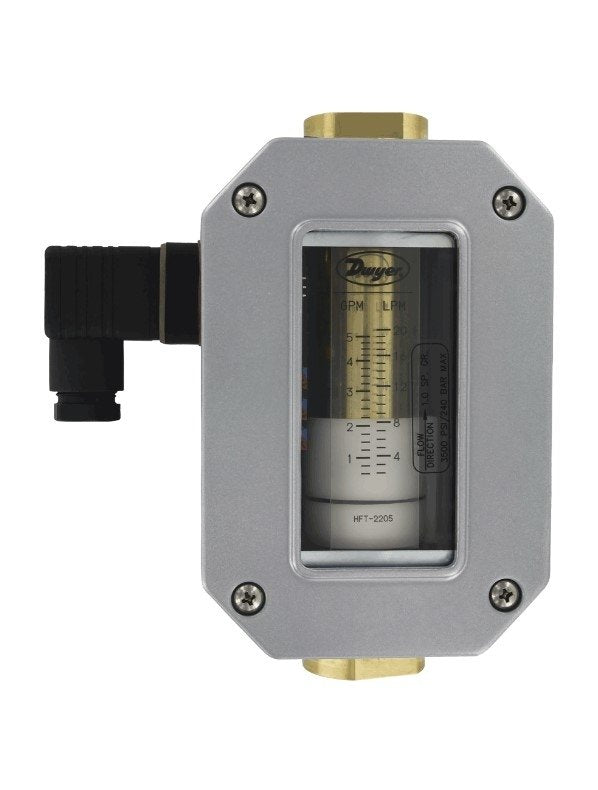

The Model HFT-2550 In-Line Transmitters have an in-line flowmeter that provides direct readings and circuitry that may deliver proportional 4 to 20 mA, 0 to 5, and 1 to 5 VDC analog outputs for continuous flow rate monitoring. There is a calibration option under Accessories.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2% FS
Connection	1-1/2" female NPT
Enclosure Rating	NEMA 4X (IP66)
Manufacturer	Dwyer Instruments
Material	Wetted: Body: Aluminum, brass or 304 SS Seals: Buna-N or Fluoroelastomer Magnet: PTFE coated Alnico Other internal parts: 304 SS
Maximum Operating Pressure	Aluminum body: 600 psig (41 bar) Brass body: 3500 psig (240 bar) 304 SS body: 6000 psig (413 bar)
Maximum operating temperature	170°F (76°C)
Output Signal	4 to 20 mA 0 to 5 V 1 to 5 V
Power	12 to 35 VDC
Range	5-50 GPM (19-189 LPM) water
Repeatability	+/-1% of FS
Response Time	<100 ms
Type	In-line flow transmitter
Viscosity	500 SSU
Weight (for shipping)	12 lb (5.4 kg)

Has an integrated direct reading scale to provide a localized indication of flow rate and an analog output to monitor application flow.
Greater application flexibility due to the lack of a straight piping requirement for the inlet or outlet and the ability to be installed in any orientation.
The NEMA 4X (IP65) enclosure and robust cast aluminum design make it suitable for installation in demanding environments or outdoors.
