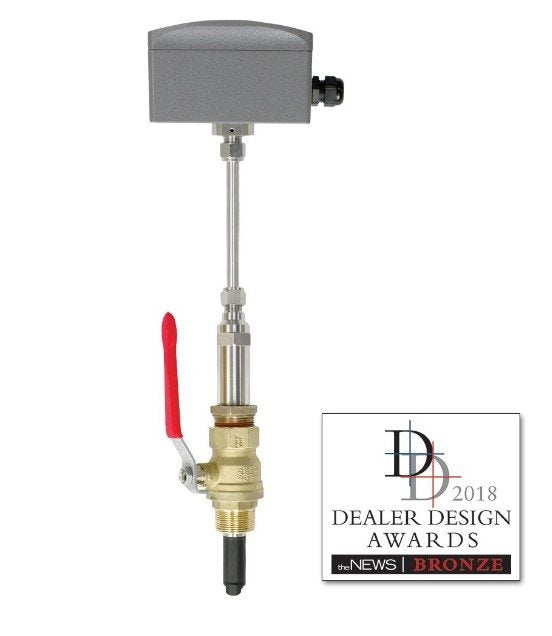

Dwyer IEF-GB-PG-COM | Insertion Electromagnetic Flow Transmitter | >10-36" (250-900 mm) Pipe, ±1% FS
The Dwyer IEF-GB-PG-COM is an insertion electromagnetic flow transmitter for >10-36" (250-900 mm) pipe, rated standard accuracy ±1% FS. Specified here with 1" male BSPT process thread, PG gland, plus BACnet MS/TP or Modbus RTU communication over RS-485.
- >10-36" (250-900 mm) pipe, standard accuracy ±1% FS, 1" male BSPT process, PG gland, BACnet/Modbus
- IEF-GB-PG-COM velocity span: 0 to 6 m/s
- Needs >20 microsiemens conductivity; IEF-GB-PG-COM
- BACnet MS/TP or Modbus RTU over 2-wire RS-485 – IEF-GB-PG-COM
- 400 psi (27.6 bar) max at 100°F; process 15 to 250°F – IEF-GB-PG-COM
- Specifications
- Features
- Downloads
| Part Number | IEF-GB-PG-COM |
| Brand | Dwyer |
| Type | Insertion electromagnetic flow transmitter |
| Accuracy | ±1% FS |
| Process Connection | 1" male BSPT |
| Display | None |
| Wetted Materials | 316 SS body and electrodes |
| Power | 12 to 42.4 VDC; 12 to 36 VAC |
| Pipe Size | >10-36" (250-900 mm) |
| Electrical Connection | PG gland |
| Velocity Range | 0 to 20 ft/s (0 to 6 m/s) |
| Max. Pressure | 400 psi (27.6 bar) @ 100 °F |
| Enclosure Rating | NEMA 6P (IP68) |
| Communication | BACnet MS/TP or Modbus RTU (RS-485) |
- Field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP) can be used to meet application requirements because they can accommodate multiple display configurations (such as alarm outputs, communication outputs, pipe size, pipe material, liquid type, analog output, pulse/frequency output, damping, and calibration factor) with a single model.
- As temperature, density, or viscosity varies, maintain system efficiency with great performance precision.
- With an installation tool and setup wizard that are straightforward to use and enable exact installation, ordering and setup are quick and simple.
- With the accompanying thickness gage and measuring tape, accessory setup kit A-IEF-KIT assures precise installation application depth, saving you time.
- Long product life, lower costs, and less maintenance needed since there are no moving components to wear out or break and fouling-inhibiting electrodes.
- Reduce installation costs with isolation valve accessory choices that enable hot-tap kit installation in running systems or simple removal without requiring system downtime.
- The NIST traceable pass/fail verification certificate for Carbon Steel Schedule 40 pipes in the sizes of 4" (102 mm), 6" (150 mm), and 8" (200 mm) must be accompanied by the necessary paperwork.
