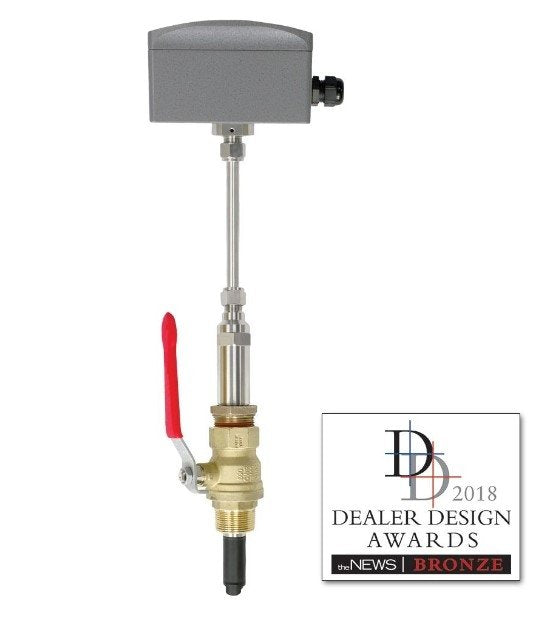

Dwyer IEF-HN-CND-CC-LCD | Insertion Electromagnetic Flow Transmitter | ±1% Reading, LCD
The Dwyer IEF-HN-CND-CC-LCD is an insertion electromagnetic flow transmitter custom configured to the specified order, rated high accuracy ±1% of reading. Specified here with 1" male NPT process thread, conduit connection, plus BACnet MS/TP or Modbus RTU communication over RS-485 and a backlit graphic LCD.
- High accuracy ±1% of reading, 1" male NPT process, conduit connection, BACnet/Modbus, LCD
- IEF-HN-CND-CC-LCD velocity span: 0 to 6 m/s
- Needs >20 microsiemens conductivity; IEF-HN-CND-CC-LCD
- BACnet MS/TP or Modbus RTU via RS-485, plus backlit LCD – IEF-HN-CND-CC-LCD
- 400 psi (27.6 bar) max at 100°F; process 15 to 250°F – IEF-HN-CND-CC-LCD
- Specifications
- Features
- Downloads
| Part Number | IEF-HN-CND-CC-LCD |
| Brand | Dwyer |
| Type | Insertion electromagnetic flow transmitter |
| Accuracy | ±1% of reading (2-20 ft/s) |
| Process Connection | 1" male NPT |
| Display | Backlit graphic LCD |
| Wetted Materials | 316 SS body and electrodes |
| Power | 12 to 42.4 VDC; 12 to 36 VAC |
| Electrical Connection | Conduit connection |
| Velocity Range | 0 to 20 ft/s (0 to 6 m/s) |
| Max. Pressure | 400 psi (27.6 bar) @ 100 °F |
| Enclosure Rating | NEMA 4X (IP66) |
| Communication | BACnet MS/TP or Modbus RTU (RS-485) |
- Field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP) can be used to meet application requirements because they can accommodate multiple display configurations (such as alarm outputs, communication outputs, pipe size, pipe material, liquid type, analog output, pulse/frequency output, damping, and calibration factor) with a single model.
- As temperature, density, or viscosity varies, maintain system efficiency with great performance precision.
- With an installation tool and setup wizard that are straightforward to use and enable exact installation, ordering and setup are quick and simple.
- With the accompanying thickness gage and measuring tape, accessory setup kit A-IEF-KIT assures precise installation application depth, saving you time.
- Long product life, lower costs, and less maintenance needed since there are no moving components to wear out or break and fouling-inhibiting electrodes.
- Reduce installation costs with isolation valve accessory choices that enable hot-tap kit installation in running systems or simple removal without requiring system downtime.
- The NIST traceable pass/fail verification certificate for Carbon Steel Schedule 40 pipes in the sizes of 4" (102 mm), 6" (150 mm), and 8" (200 mm) must be accompanied by the necessary paperwork.
