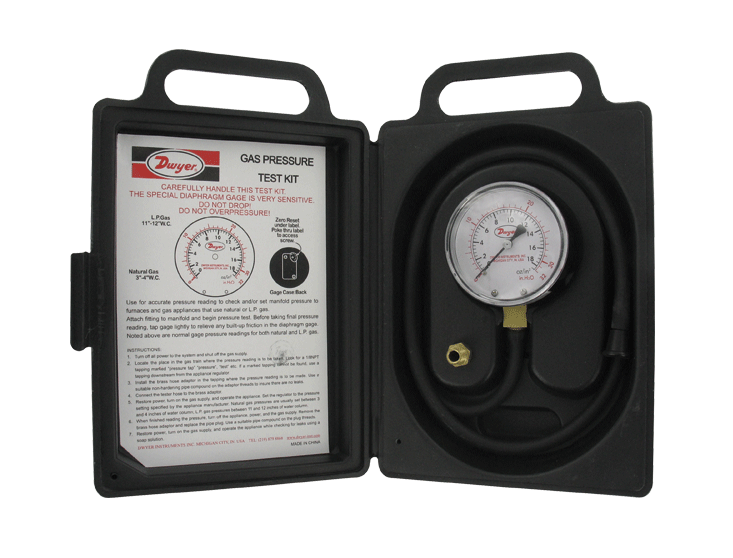

Dwyer LPTK-01 | Gas Pressure Test Kit | 0-15" w.c. and 0-8.6 oz/in²
The Dwyer LPTK-01 is a low pressure gas test kit with a dual-range gauge reading 0-15" w.c. and 0-8.6 oz/in². It is used to test LP and natural gas lines and controls, showing whether pressure is correct or a leak is present.
- 36" (91.4 cm) rubber hose with 1/8" NPT brass hose barb
- Protective ABS plastic carrying case
- Steel gauge housing with black finish
- Rated -40 to 150°F (-40 to 65°C)
- Accuracy ±3% of full scale on both ranges
- Specifications
- Features
- Downloads
| Part Number | LPTK-01 |
| Brand | Dwyer |
| Ranges | 0-15" w.c.; 0-8.6 oz/in² |
| Accuracy | ±3% full scale |
| Gauge Size | 2-1/2" (63 mm) |
| Process Connection | 1/8" NPT, brass hose barb |
| Hose | Rubber, 36" (91.4 cm) |
| Wetted Materials | Gauge: brass; hose: rubber |
| Gauge Housing | Steel, black finish |
| Case | ABS plastic |
| Max. Pressure | 110% of range |
| Temperature Limits | -40 to 150°F (-40 to 65°C) |
| Weight | 1.75 lb (0.8 kg) |
- A calibration screw located on the gage's rear.
- Easy-to-use interface that is straightforward.
