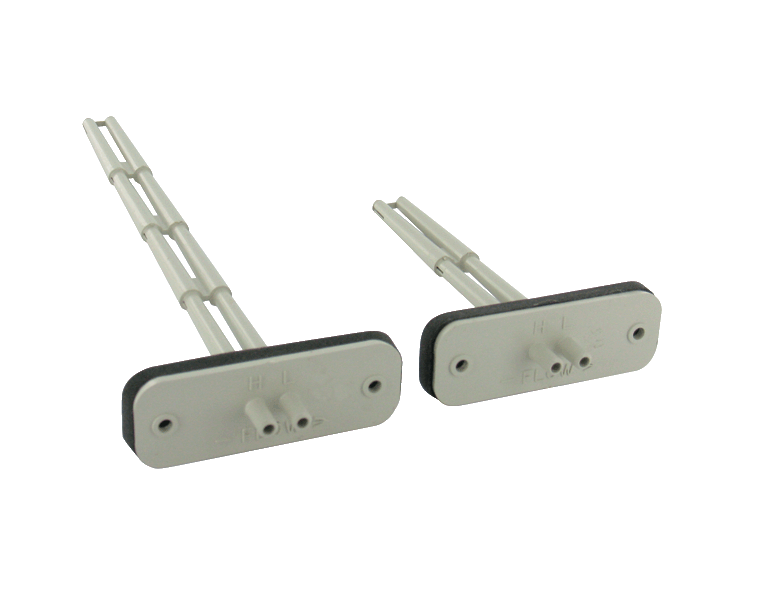

Dwyer PAFS-1006 | Averaging Flow Sensor | 12-1/2" (31.75 cm) insertion

Name: Dwyer PAFS-1006 | Averaging Flow Sensor | 12-1/2" (31.75 cm) insertion
Brand: Dwyer
SKU: PAFS-1006
Availability: OutOfStock

Part Number : PAFS-1006

With a 12-1/2" (31.75 cm) insertion length, the Dwyer PAFS-1006 averaging flow sensor measures velocity pressure in the inlet section of variable air volume and fan terminal units. Beyond terminal units, the PAFS-1006 can detect differential pressure at various locations in main or branch ducts.

PAFS-1006 insertion length: 12-1/2" (31.75 cm)
Polycarbonate construction; wetted parts ABS/polycarbonate (UL94-5V) on the PAFS-1006
Mounts via an integral flange with gasket; PAFS-1006 connects to 1/4" (6 mm) ID, 3/8" (10 mm) OD tubing
PAFS-1006 operating temperature 40 to 120°F (4 to 49°C), storage -40 to 140°F (-40 to 60°C)
Weight 1 oz (28 g); PAFS-1006 meets EU RoHS II (2011/65/EU) technical requirements

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	PAFS-1006
Brand	Dwyer
Product Type	Averaging flow sensor
Series	PAFS-1000
Insertion Length	12-1/2" (31.75 cm)
Material	Polycarbonate
Wetted Material	ABS/polycarbonate (UL94-5V)
Process Connection	1/4" (6 mm) ID, 3/8" (10 mm) OD tubing
Port Size	1/4"
Mounting	Integral flange with gasket
Operating Temperature	40 to 120°F (4 to 49°C)
Storage Temperature	-40 to 140°F (-40 to 60°C)
Weight	1 oz (28 g)
Approvals	RoHS II (EU Directive 2011/65/EU)

You can use a simple mounting flange with rectangular or round ducts.
Total pressure is sensed by the "H" port, and static pressure is sensed by the "L" port.
The differential, also known as velocity pressure, exists between these signals.
In order to fit box size diameters of 4 to 16" (10.16 to 40.64 cm), up to four sensing points and lengths of 3-5/32to 9-29/32" (8.02 to 25.62 cm) are available.
