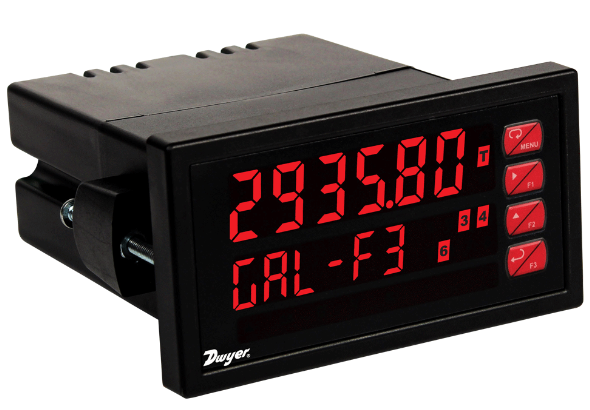

Dwyer PPM-220 | Pulse Panel Meter | 12-24 VDC, 2 relays, No Transmitter
Dwyer PPM-220 is a 12-24 VDC pulse panel meter supplied with two relays and no transmitter output. It accepts a pulse input and can power the connected flowmeter with 5, 10 or 24 VDC; the PPM-220 has no 4-20 mA retransmission.
- PPM-220 supply: 12-24 VDC (+/-10%, 15 W max)
- Two relays on the PPM-220, rated 3 A at 30 VDC and 125/250 VAC resistive, with independent 0 to 999.9 s delays
- Dual-line 6-digit display (0.60 in and 0.46 in) with five user-selectable decimal positions on the PPM-220
- Accuracy +/-0.03% of calibrated span +/-1 count; NEMA 4X, IP65 front (PPM-220)
- Free USB programming software resident on the meter; CE, RoHS, UL and cUL approvals (PPM-220)
- Specifications
- Features
- Downloads
| Part Number | PPM-220 |
| Brand | Dwyer |
| Relays | 2 relays |
| Analogue Output | None |
| Accuracy | +/-0.03% of calibrated span +/-1 count |
| Display | Dual-line 6-digit, 0.60 in and 0.46 in |
| Enclosure Rating | NEMA 4X, IP65 front |
| Decimal Points | Five positions, user selectable |
| Programming | Free, USB based, resident on meter |
| Operating Temperature | -40 to 149 °F (-40 to 65 °C) |
| Approvals | CE, RoHS, cUL, UL |
| Relay Time Delay | 0 to 999.9 s on and off, independent per relay |
| Supply Voltage | 12 to 24 VDC +/-10%, 15 W max |
| Relay Rating | 3 A @ 30 VDC and 125/250 VAC resistive; 1/14 HP @ 125/250 VAC inductive |
- Password protection with three tiers.
- Calculus for flow and circular horizontal tanks.
- Configurable exponent, square root, or 32-point linearization.
- Control of many pump alternators.
- Rate expressed in terms of units per minute, hour, day, or second.
- Total, grand total, or grand total that cannot be reset.
- Options for isolated 4–20 mA outputs and two or four relays.
- Extension modules provide digital I/O and an external 4-relay.
- Serial connection possibilities include RS-232, RS-422, and RS-485.
