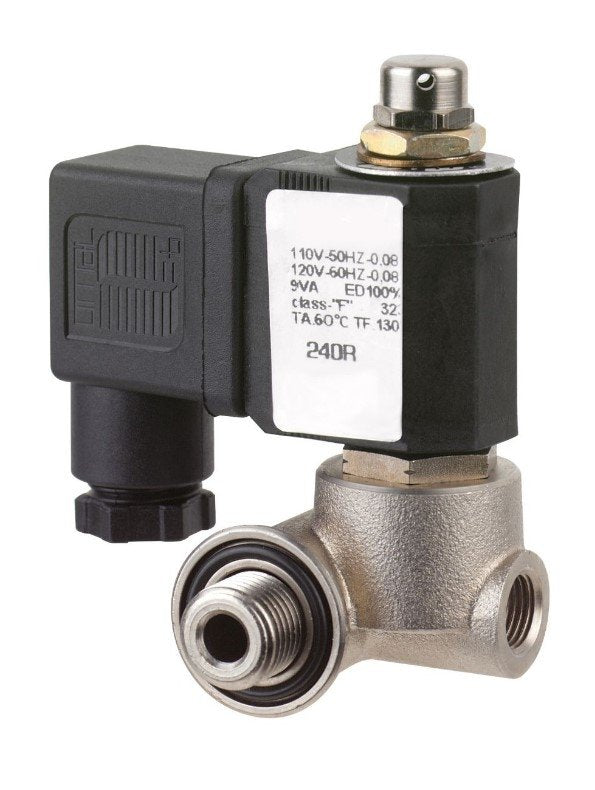

Dwyer PV22 | Solenoid Pilot Valve | 120 VAC, for 2-1/2" SAV Actuator
Part Number : PV22
Mounting directly onto 2-1/2" Series SAV angle seat valve actuators, the Dwyer PV22 is a 120 VAC three-way normally closed solenoid pilot valve. An electrical signal to the PV22 shifts the actuator from closed to open, or the reverse for normally open valves, and the valve returns to its normal position once the signal stops.
- Actuator port 1/4" BSP and 1/8" NPT pilot media port on the PV22
- PV22 pilot media: air, water or inert gases (water needs a drain line on the exhaust)
- IP65 with the supplied DIN connector; manual override on the PV22
- Niploy-coated brass body with FKM seal; the PV22 mounts by banjo connection
- PV22 ratings: 150 psig (10.3 bar), -10 to 60°C
