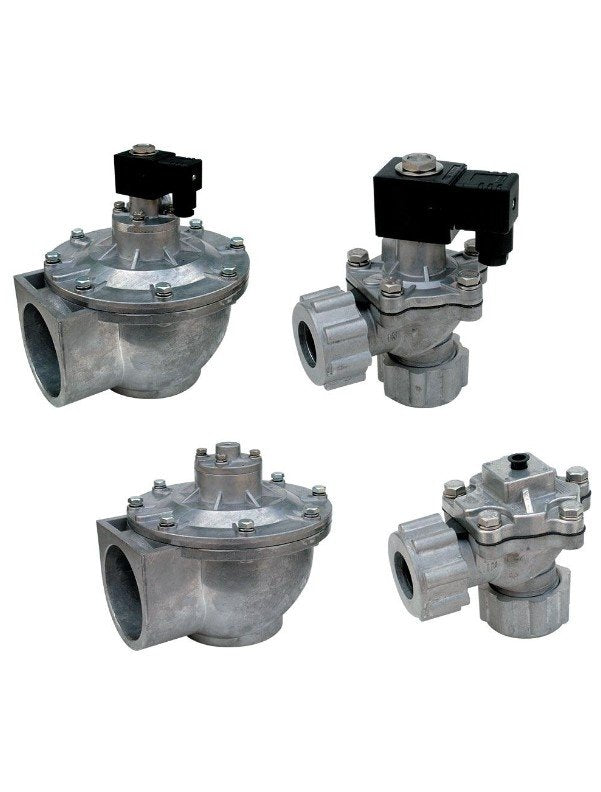

Dwyer RDCV20T | Dust Collector Diaphragm Valve | 3/4", NPT, Remote Coil

Name: Dwyer RDCV20T | Dust Collector Diaphragm Valve | 3/4", NPT, Remote Coil
Brand: Dwyer
SKU: RDCV20T
Availability: OutOfStock

Part Number : RDCV20T

Dwyer's RDCV20T (3/4", NPT threaded connection, remote coil) is a pulse diaphragm valve for the air pulse that cleans filters in jet pulse dust collectors run by Series DCT1000 or DCT500 timer boards.

3/4" valve, NPT threaded connection (RDCV20T)
Remote coil (RDCV20T)
Single diaphragm in the RDCV20T
304 SS trim and spring in an aluminium body; NBR seals (RDCV20T)
Pressure range of the RDCV20T: 4.4 to 124.7 psi (0.3 to 8.6 bar)
RDCV20T: media -20 to 85 °C, ambient -20 to 60 °C, CE

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	RDCV20T
Brand	Dwyer
Type	Dust Collector Diaphragm Valve
Valve Size	3/4"
Process Connection	NPT
Solenoid	Remote coil
Number of Diaphragms	1
Wetted Materials	Aluminium body, 304 SS trim, NBR diaphragm and seals, polyamide disc
Operating Pressure	0.3 to 8.6 bar (4.4 to 124.7 psi)
Media Temperature	-20 to 85 °C (-4 to 185 °F)
Ambient Temperature	-20 to 60 °C
Approvals	CE

Diaphragm made of thermoplastic polyurethane for extended life.
High flow rate to provide thorough cleaning.
The valve can be installed in any orientation.
Quick response time both on and off.

Dwyer RDCV20T | Dust Collector Diaphragm Valve | 3/4", NPT, Remote Coil

DOWNLOAD CATALOG
