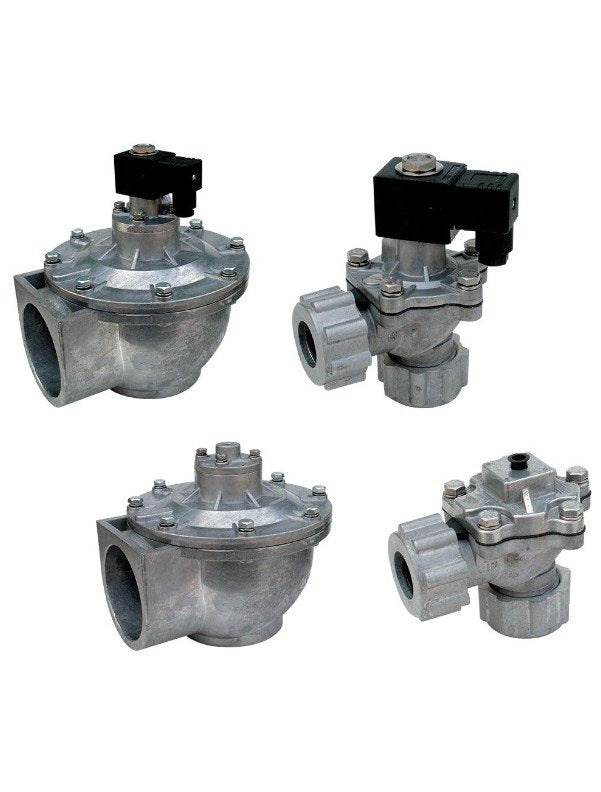

Dwyer RDCV25C | Dust Collector Diaphragm Valve | 1", Coupling, Remote Coil, Cv 23

Name: Dwyer RDCV25C | Dust Collector Diaphragm Valve | 1", Coupling, Remote Coil, Cv 23
Brand: Dwyer
SKU: RDCV25C
Availability: OutOfStock

Part Number : RDCV25C

For the air pulse that cleans filters in jet pulse dust collectors run by Series DCT1000 or DCT500 timer boards, choose the Dwyer RDCV25C: a 1" diaphragm valve with remote coil, coupling connection. The coupling fit lets the RDCV25C go on without cleaning or deburring the blowtube and stub pipe.

1" valve, coupling connection, Cv 23 (RDCV25C)
Remote coil (RDCV25C)
Single diaphragm in the RDCV25C
Aluminium body, polyamide diaphragm disc, NBR diaphragm (RDCV25C)
Handles 0.3-8.6 bar line pressure (RDCV25C)
Media -20 to 85 °C, ambient -20 to 60 °C - RDCV25C

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	RDCV25C
Brand	Dwyer
Type	Dust Collector Diaphragm Valve
Valve Size	1"
Process Connection	Coupling
Solenoid	Remote coil
Cv Factor	23
Number of Diaphragms	1
Wetted Materials	Aluminium body, 304 SS trim, NBR diaphragm and seals, polyamide disc
Operating Pressure	0.3 to 8.6 bar (4.4 to 124.7 psi)
Media Temperature	-20 to 85 °C (-4 to 185 °F)
Ambient Temperature	-20 to 60 °C

Diaphragm made of thermoplastic polyurethane for extended life.
High flow rate to provide thorough cleaning.
The valve can be installed in any orientation.
Quick response time both on and off.
