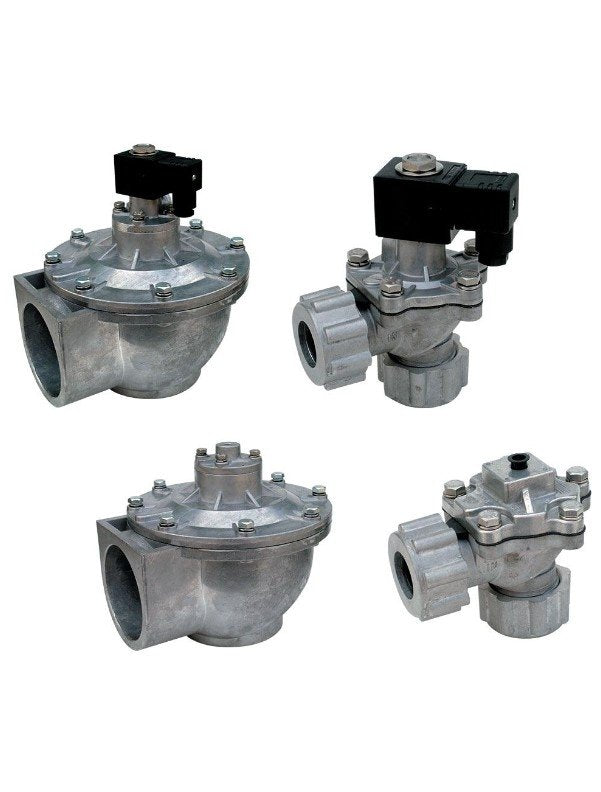

Dwyer RDCV25T | Dust Collector Diaphragm Valve | 1", NPT, Remote Coil, Cv 23

Name: Dwyer RDCV25T | Dust Collector Diaphragm Valve | 1", NPT, Remote Coil, Cv 23
Brand: Dwyer
SKU: RDCV25T
Availability: OutOfStock

Part Number : RDCV25T

The Dwyer RDCV25T is a 1" diaphragm valve with a remote coil and NPT threaded connection, used for controlling the air pulse that cleans filters in jet pulse dust collectors run by Series DCT1000 or DCT500 timer boards.

1" valve, NPT threaded connection, Cv 23 (RDCV25T)
Remote coil (RDCV25T)
Single diaphragm in the RDCV25T
Aluminium body with 304 SS trim; NBR diaphragm and seals (RDCV25T)
Operating pressure 0.3 to 8.6 bar (4.4 to 124.7 psi) for the RDCV25T
RDCV25T: media -20 to 85 °C, ambient -20 to 60 °C, CE

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	RDCV25T
Brand	Dwyer
Type	Dust Collector Diaphragm Valve
Valve Size	1"
Process Connection	NPT
Solenoid	Remote coil
Cv Factor	23
Number of Diaphragms	1
Wetted Materials	Aluminium body, 304 SS trim, NBR diaphragm and seals, polyamide disc
Operating Pressure	0.3 to 8.6 bar (4.4 to 124.7 psi)
Media Temperature	-20 to 85 °C (-4 to 185 °F)
Ambient Temperature	-20 to 60 °C
Approvals	CE

Diaphragm made of thermoplastic polyurethane for extended life.
High flow rate to provide thorough cleaning.
The valve can be installed in any orientation.
Quick response time both on and off.

Dwyer RDCV25T | Dust Collector Diaphragm Valve | 1", NPT, Remote Coil, Cv 23

DOWNLOAD CATALOG
