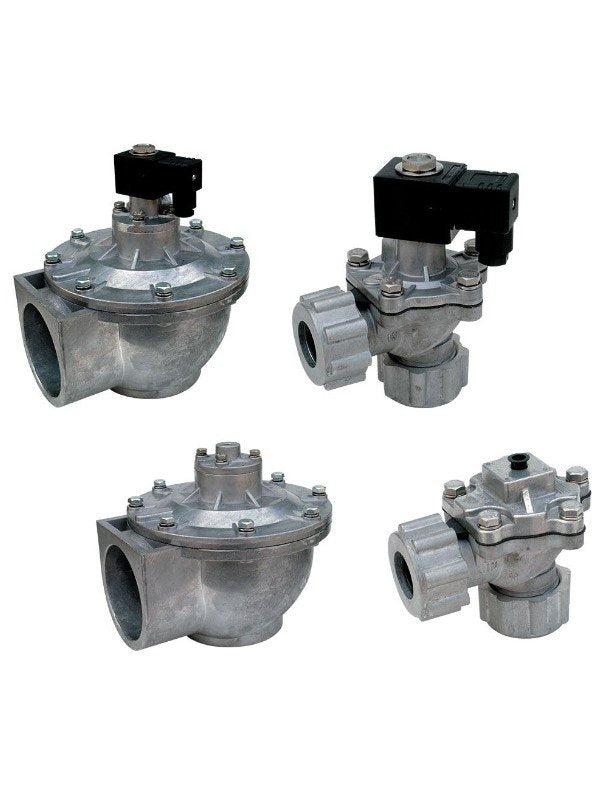

Dwyer RDCV50T | Dust Collector Diaphragm Valve | 2", NPT, Remote Coil, Cv 106

Name: Dwyer RDCV50T | Dust Collector Diaphragm Valve | 2", NPT, Remote Coil, Cv 106
Brand: Dwyer
SKU: RDCV50T
Availability: OutOfStock

Part Number : RDCV50T

Built for controlling the air pulse that cleans filters in jet pulse dust collectors run by Series DCT1000 or DCT500 timer boards, the Dwyer RDCV50T diaphragm valve comes in 2" size with a remote coil and NPT threaded ports.

2" valve, NPT threaded connection, Cv 106 (RDCV50T)
Remote coil (RDCV50T)
Two diaphragms in the RDCV50T
NBR diaphragm and seals, polyamide disc, aluminium body (RDCV50T)
RDCV50T works between 0.3 and 8.6 bar (4.4-124.7 psi)
Media -20 to 85 °C, ambient -20 to 60 °C, CE - RDCV50T

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	RDCV50T
Brand	Dwyer
Type	Dust Collector Diaphragm Valve
Valve Size	2"
Process Connection	NPT
Solenoid	Remote coil
Cv Factor	106
Number of Diaphragms	2
Wetted Materials	Aluminium body, 304 SS trim, NBR diaphragm and seals, polyamide disc
Operating Pressure	0.3 to 8.6 bar (4.4 to 124.7 psi)
Media Temperature	-20 to 85 °C (-4 to 185 °F)
Ambient Temperature	-20 to 60 °C
Approvals	CE

Diaphragm made of thermoplastic polyurethane for extended life.
High flow rate to provide thorough cleaning.
The valve can be installed in any orientation.
Quick response time both on and off.
