Dwyer RDCV76T | Dust Collector Diaphragm Valve | 3", NPT, Remote Coil, Cv 167

Name: Dwyer RDCV76T | Dust Collector Diaphragm Valve | 3", NPT, Remote Coil, Cv 167
Brand: Dwyer
SKU: RDCV76T
Availability: OutOfStock

Part Number : RDCV76T

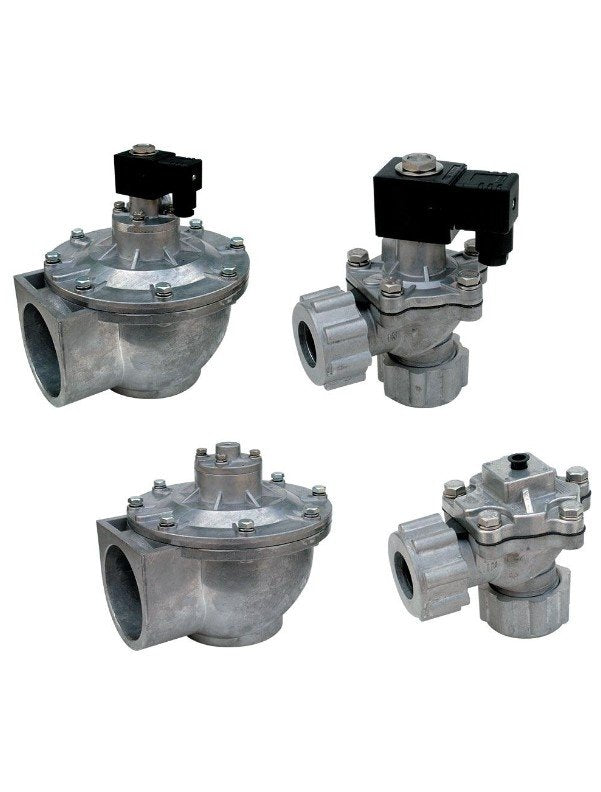

For the air pulse that cleans filters in jet pulse dust collectors run by Series DCT1000 or DCT500 timer boards, choose the Dwyer RDCV76T: a 3" diaphragm valve with remote coil, NPT threaded connection.

3" valve, NPT threaded connection, Cv 167 (RDCV76T)
Remote coil (RDCV76T)
Two diaphragms in the RDCV76T
Aluminium body, polyamide diaphragm disc, NBR diaphragm (RDCV76T)
Handles 0.3-8.6 bar line pressure (RDCV76T)
Media -20 to 85 °C, ambient -20 to 60 °C, CE - RDCV76T

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	RDCV76T
Brand	Dwyer
Type	Dust Collector Diaphragm Valve
Valve Size	3"
Process Connection	NPT
Solenoid	Remote coil
Cv Factor	167
Number of Diaphragms	2
Wetted Materials	Aluminium body, 304 SS trim, NBR diaphragm and seals, polyamide disc
Operating Pressure	0.3 to 8.6 bar (4.4 to 124.7 psi)
Media Temperature	-20 to 85 °C (-4 to 185 °F)
Ambient Temperature	-20 to 60 °C
Approvals	CE

Diaphragm made of thermoplastic polyurethane for extended life.
High flow rate to provide thorough cleaning.
The valve can be installed in any orientation.
Quick response time both on and off.

Dwyer RDCV76T | Dust Collector Diaphragm Valve | 3", NPT, Remote Coil, Cv 167
