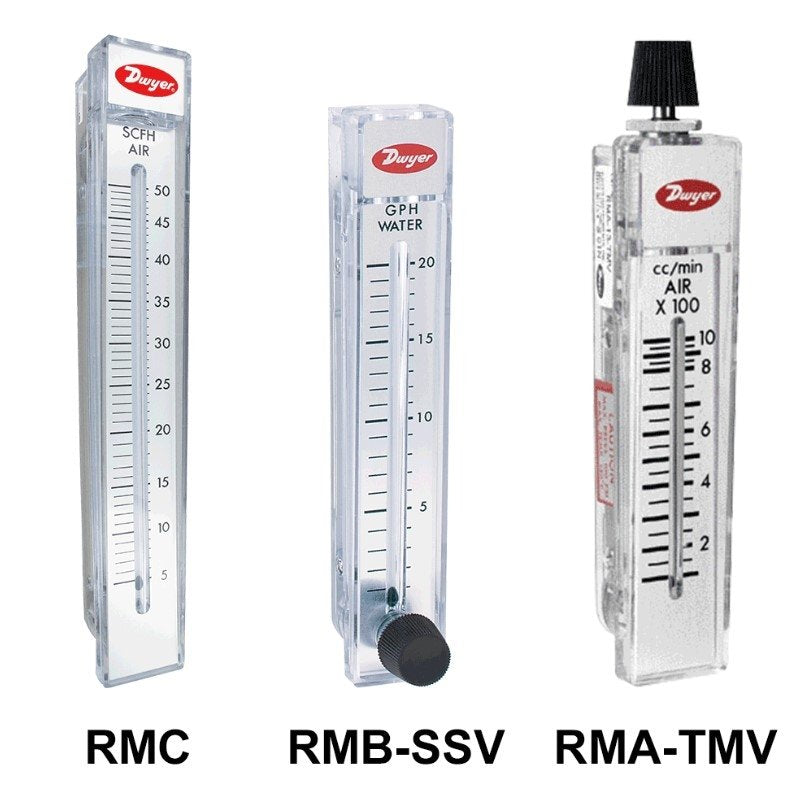

Dwyer RMC-101 | Rate-Master Flowmeter | 5-50 SCFH Air, 10" Scale, No Valve

Part Number : RMC-101

The Dwyer RMC-101 is a Rate-Master flowmeter that reads 5-50 SCFH air directly on a 10" (254 mm) scale and comes without a valve. Suited to general-purpose gas and liquid flow indication, the RMC-101 can be surface or panel mounted.

  • Range 5-50 SCFH air on the 10" (254 mm) scale, no valve fitted
  • 2% accuracy and 1/2" female NPT process connections on the RMC-101
  • RMC-101 rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
  • Wetted parts of the RMC-101: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
  • RMC-101 body swaps within its 10" scale size for cleaning or a range change, leaving pipework in place
  • Weighs 39 oz (1105.6 g); the RMC-101 meets RoHS II (EU Directive 2011/65/EU)
