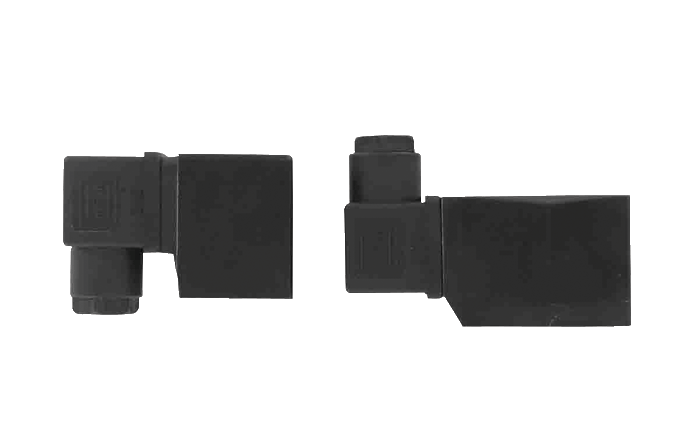

Dwyer SRC-D2S0C | Solenoid Coil | 110 VAC, Normally Closed, S Series

Name: Dwyer SRC-D2S0C | Solenoid Coil | 110 VAC, Normally Closed, S Series
Brand: Dwyer
SKU: SRC-D2S0C
Availability: OutOfStock

Part Number : SRC-D2S0C

For normally closed solenoid valves needing a 110 VAC supply, Dwyer offers the SRC-D2S0C DIN-connected coil. The coil switches its valve when an electrical signal is applied and can be exchanged on site on compatible SSV and SBSV valves.

110 VAC coil for normally closed solenoid valves
Listed for SBSV valves; S Series (110 VAC, NC)
DIN electrical connection with NEMA 13 (IP54) rating on the SRC-D2S0C
CE approved 110 VAC NC coil, field replaceable

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	SRC-D2S0C
Brand	Dwyer
Type	Solenoid coil
Voltage	110 VAC
Valve Operation	Normally Closed
Series	S Series
Valves	SBSV
Electrical Connection	DIN
Enclosure Rating	NEMA 13 (IP54)
Approvals	CE

The Series SRC Solenoid Coils are designed to electrically operate the SSV and SBSV solenoid valves, ensuring compatibility and seamless integration with these valve models.
When the solenoid coil receives an electrical input signal, it acts upon the valve, causing it to change its state, either opening or closing as required.
These coils are field replaceable, allowing for easy maintenance and replacement without requiring specialized tools or expertise.
Available in a wide range of voltages, catering to different electrical systems and requirements, providing flexibility and compatibility in various applications.
Designed to be compatible with their corresponding solenoid valves, ensuring easy interchangeability and compatibility for hassle-free operation.
Suitable for use in diverse industrial applications where solenoid valves are employed, offering versatility and reliability in operation.
Designed to deliver reliable performance, ensuring consistent operation and effective control of the associated solenoid valves.
