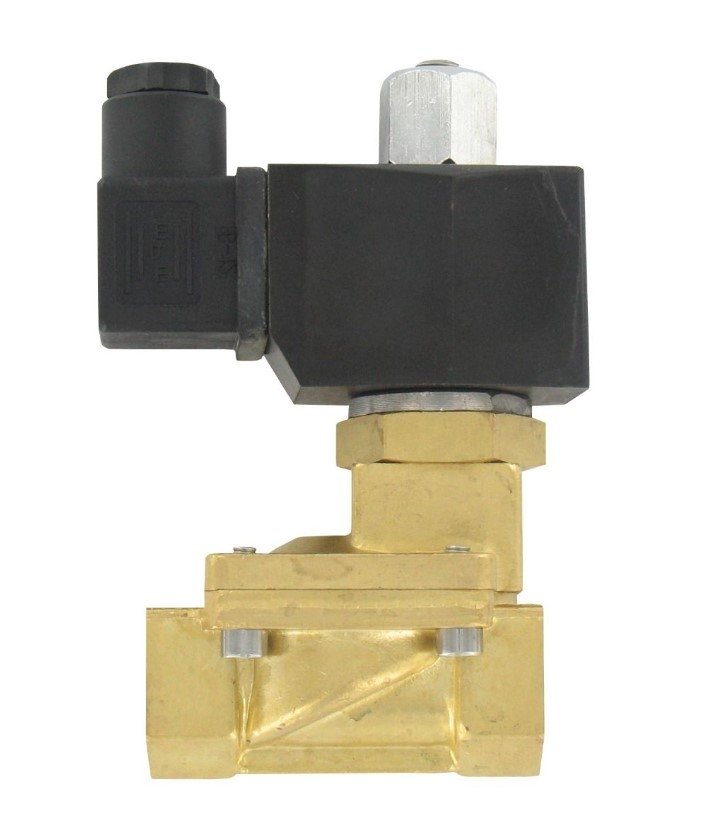

Dwyer SSV-B7N2 | Brass Solenoid Valve | 2-Way, 1-1/4" NPT, 220 VAC
Part Number : SSV-B7N2
For on/off control of air, gas or water in 1-1/4" NPT pipework, the Dwyer SSV-B7N2 two-way solenoid valve combines a brass body with a 220 VAC coil. It uses a NBR seal rated for process media up to 80°C, with an operating window of 0.5 to 8 bar in the 1-1/4" size.
- Brass body and 304 SS spring with 1-1/4" female NPT ends
- 0.5 to 8 bar operating pressure at 1-1/4" in brass, 12 bar maximum
- Process media up to 80°C through the 1-1/4" body (NBR seal)
- 220 VAC coil with DIN connector on the 1-1/4" brass valve; NEMA 13 (IP54) enclosure
- SSV-B7N2 mounts in any position, ideally with the solenoid vertically above the valve; weight 3.00 kg (6.60 lb)
