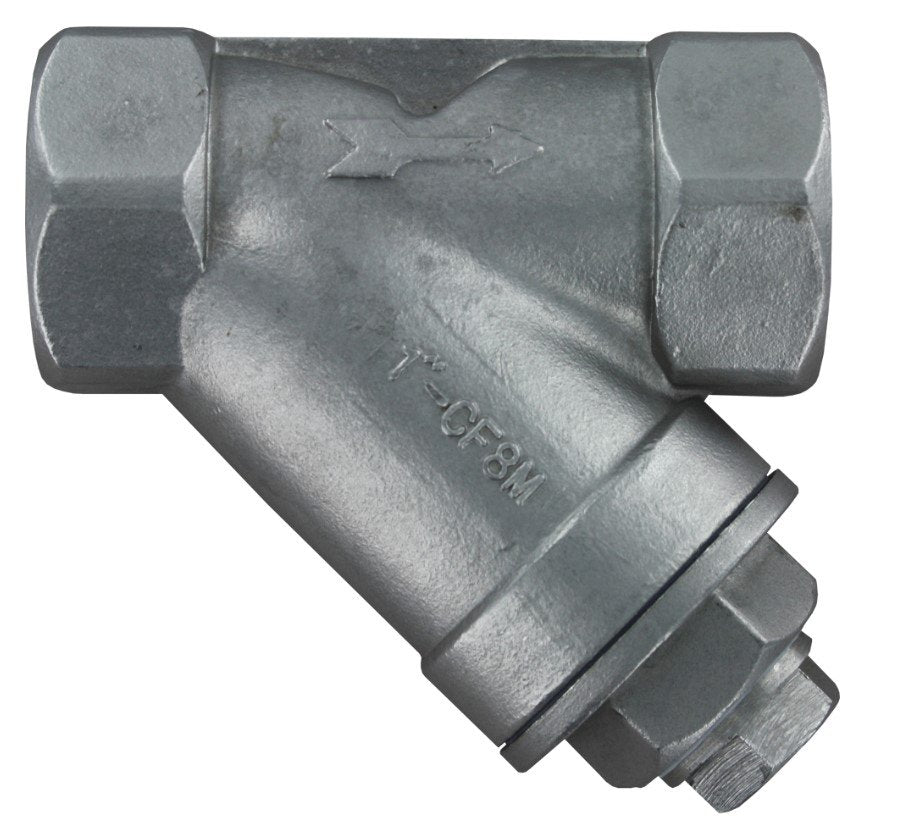

Dwyer SYS-03 | Stainless Steel Y-Strainer | 3/4" Female NPT, 800 psi WOG

Name: Dwyer SYS-03 | Stainless Steel Y-Strainer | 3/4" Female NPT, 800 psi WOG
Brand: Dwyer
SKU: SYS-03
Availability: OutOfStock

Part Number : SYS-03

The Dwyer SYS-03 is a stainless steel Y-strainer for 3/4" lines, with female NPT ends and an 800 psi WOG rating. Its cast 316 stainless steel construction makes the SYS-03 a fit for industrial service where corrosive media are present.

SYS-03 pressure rating: 800 psi WOG
Rated for -10 to 250°F (-23 to 121°C) (SYS-03)
3/4" female NPT connections on the SYS-03
Body and cap in cast 316 SS (CF8M), plug in 316 SS (SYS-03)
316 SS screen and PTFE seal in the SYS-03

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	SYS-03
Brand	Dwyer
Type	Stainless Steel Y-Strainer
Pipe Size	3/4"
End Connection	Female NPT
Max Pressure	800 psi WOG
Operating Temperature	-10 to 250°F (-23 to 121°C)
Body and Cap	Cast 316 SS (CF8M)
Plug	316 SS
Screen	316 SS
Seal	PTFE

The Series SYS Stainless Steel Y-Strainer offers a cost-effective option for industrial applications, especially in environments where corrosive media are present, providing efficient filtration at a reasonable cost.
Ideal for use with corrosive media, the stainless steel construction ensures durability and reliability even in harsh chemical environments.
Featuring a versatile Y configuration and available in a wide range of sizes, these Y-strainers can be used in various industrial settings, offering flexibility in application.
The body, cap, and plug are made from stainless steel, ensuring longevity and resistance to corrosion in demanding conditions.
The seal is constructed of PTFE (polytetrafluoroethylene), ensuring a long service life and resistance to corrosion and wear.
Equipped with a stainless steel strainer, these Y-strainers provide excellent filtration, preventing damage to valves, meters, and other equipment from rust and dirt particles.
Despite providing effective filtration, the Y-strainers maintain high flow characteristics, ensuring efficient fluid movement through the system while preventing damage to downstream equipment.
