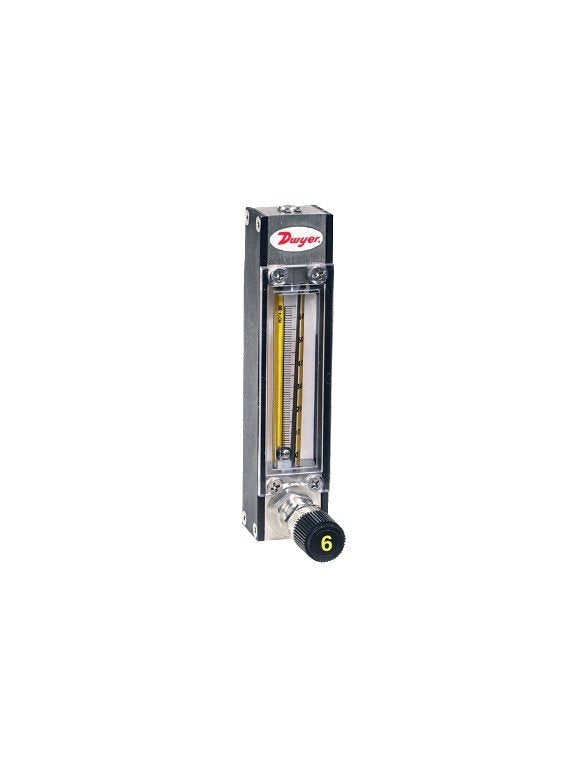

Dwyer VA10423 | Variable Area Glass Flowmeter | Glass float, 2.29 SCFH air, 0.329 GPH water

Part Number : VA10423

Dwyer VA10423: a variable area glass flowmeter carrying a glass float, with maximum flows of 0.329 GPH (20.8 ml/min) water and 2.29 SCFH (1081 ml/min) air. The VA10423 is supplied assembled for panel mounting and is used for carrier gases, process flow indication and lab or pilot-plant measurement.

  • Accuracy of the VA10423: ±2% FS (70°F, 14.7 psia), with ±0.25% FS repeatability
  • Air and water correlation charts accompany the universal mm scale of the VA10423
  • Standard 6-turn needle valve on the VA10423; 16-turn high precision valve offered separately
  • Borosilicate glass tube, 10:1 turn-down and two 1/8" female NPT ports (VA10423)
  • For bench use, the VA10423 can sit on an optional acrylic tripod base
