Dwyer Instruments VA15419 | Variable area glass flowmeter | Glass float | Flow rate 27.9 SCFH (13153 ml/min) air | 4.9 GPH (309 ml/min) water - generaltechuae

Dwyer VA15419 | Variable Area Glass Flowmeter | Glass float, 27.9 SCFH air, 4.9 GPH water

Part Number : VA15419

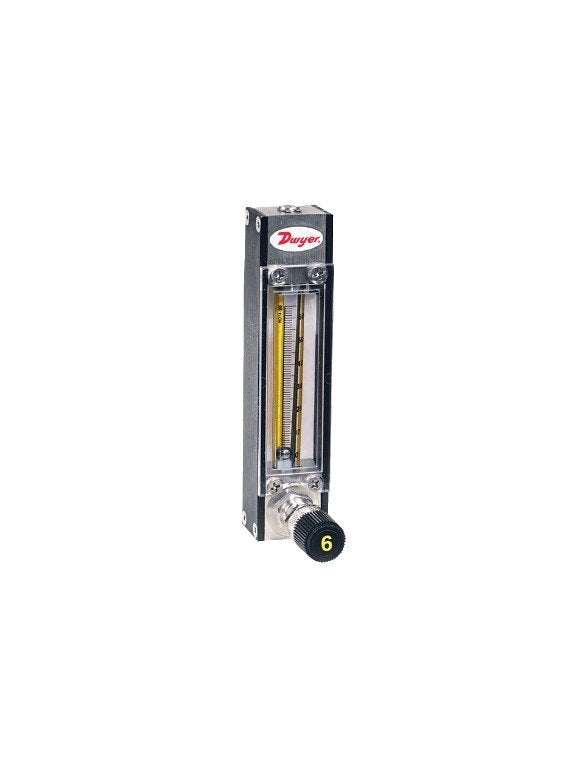

The Dwyer VA15419 is a variable area glass flowmeter with a glass float, graduated for 27.9 SCFH (13153 ml/min) of air or 4.9 GPH (309 ml/min) of water. The VA15419 is listed for process flow and level indication, carrier-gas metering, and liquid or gas measurement in pilot plants and laboratories.

  • VA15419 accuracy ±2% FS at 70°F (21.1°C) and 14.7 psia, repeatability ±0.25% FS
  • Universal mm scale with air and water correlation charts and calibration data supplied with the VA15419
  • Standard 6-turn needle valve on the VA15419; 16-turn high precision metering valve sold separately
  • Two 1/8" female NPT connections, vertical mounting, 10:1 turn-down (VA15419)
  • VA15419 ships assembled for panel mounting; an optional acrylic tripod base allows bench use
