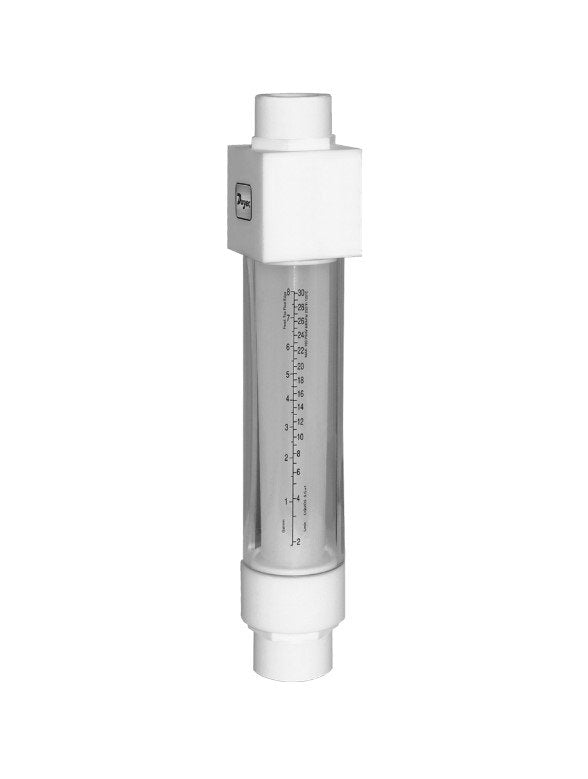

Dwyer VAT-6011 | Fluoropolymer Variable Area Flowmeter | 20 LPM, 1/2" female NPT

Part Number : VAT-6011

Rated at 20 LPM (5.28 GPM) and plumbed through a 1/2" female NPT process connection, the Dwyer VAT-6011 is a fluoropolymer variable area flowmeter. The VAT-6011 targets applications with very pure or corrosive liquids; each unit is leak tested on its own.

  • Each VAT-6011 individually tested to 1 x 10⁻⁷ sccs helium leak integrity
  • VAT-6011 accuracy: ±5% FS (70°F, 14.7 psia)
  • VAT-6011 flowtube in PFA; float and end fittings in PTFE; guide rods in PCTFE
  • Maximum operating pressure 100 psig (6.9 bar) and temperature 250°F (121°C) on the VAT-6011
  • VAT-6011 installs vertically and in-line
