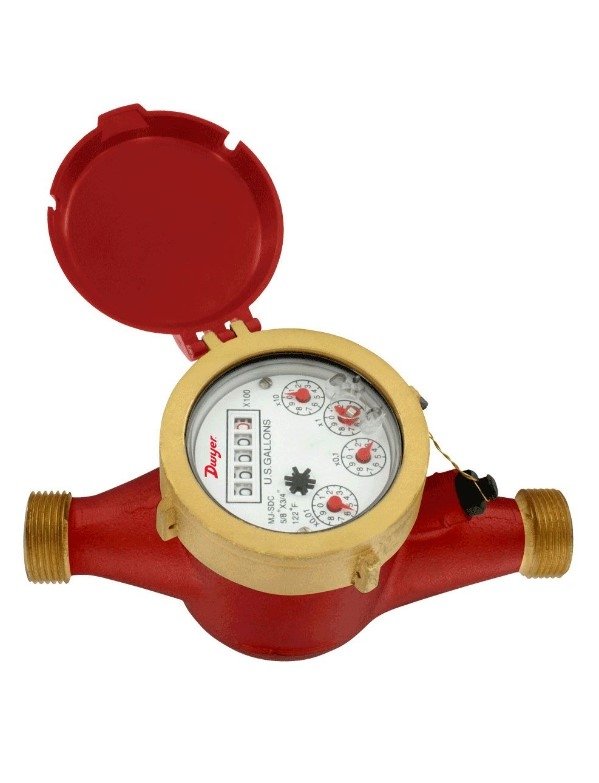

Dwyer WMH-A-C-01-1 | Multi-Jet Hot Water Meter | 5/8" x 1/2", 1 gal/pulse output

Part Number : WMH-A-C-01-1

Dwyer WMH-A-C-01-1: a 5/8" x 1/2" hot water multi-jet meter, 1 gal per pulse, rated to 190°F (88°C). A mechanical register on the WMH-A-C-01-1 records total gallons used, with NPT or BSPT couplings available in the WMH series.

  • Accuracy of the WMH-A-C-01-1: ±1.5% nominal flow, ±3% transitional flow
  • Flow-proportional pulse output on the WMH-A-C-01-1, rated 0.01 A at 24 VAC/DC
  • WMH-A-C-01-1 wiring: colour-coded leads, 1.5 m (4.5 ft)
  • Brass construction throughout the WMH-A-C-01-1 wetted path
  • WMH-A-C-01-1 handles up to 150 psi (10 bar) and mounts horizontally, register up
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
