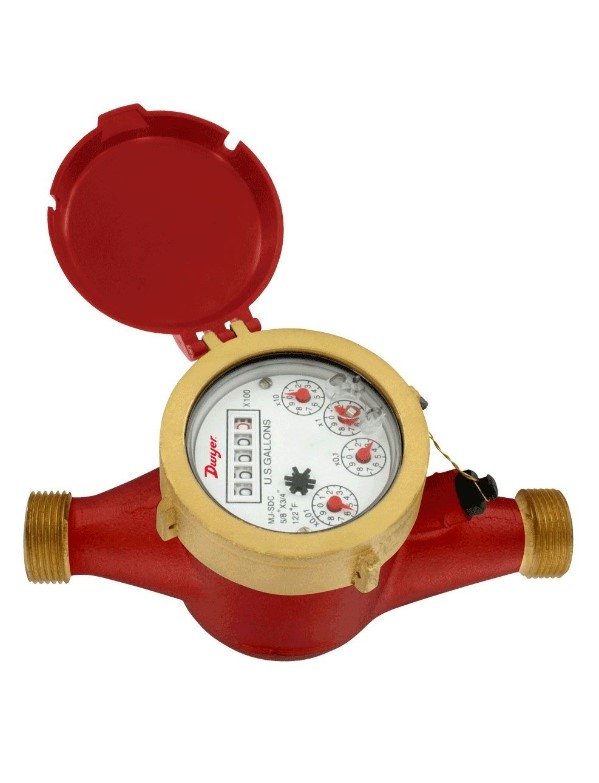

Dwyer WMH-A-C-01-100 | Multi-Jet Hot Water Meter | 5/8" x 1/2", 100 gal/pulse output
Built for hot water up to 190°F (88°C), the Dwyer WMH-A-C-01-100 is a 5/8" x 1/2" multi-jet meter that sends 100 gal per pulse. Its register totals consumption in gallons; NPT or BSPT couplings are offered across the WMH series that includes the WMH-A-C-01-100.
- ±1.5% nominal-flow and ±3% transitional-flow accuracy (WMH-A-C-01-100)
- WMH-A-C-01-100 pulse signal tracks flow rate; contact rating 0.01 A @ 24 VAC/DC
- 4.5 ft (1.5 m) colour-coded leads on the WMH-A-C-01-100
- WMH-A-C-01-100 body, couplings and measuring chamber in brass
- Pressure limit 150 psi (10 bar); horizontal mounting with the register facing up (WMH-A-C-01-100)
- Specifications
- Features
- Downloads
| Part Number | WMH-A-C-01-100 |
| Brand | Dwyer |
| Type | Multi-jet hot water meter |
| Pipe Size | 5/8" x 1/2" |
| Pulse Output | 100 gal per pulse, proportional to flow rate |
| Accuracy | Nominal flow ±1.5%; transitional flow ±3% |
| Max Operating Pressure | 150 psi (10 bar) |
| Max Operating Temperature | 190 °F (88 °C) |
| Wetted Materials | Brass body, couplings and measuring chamber |
| Mounting | Horizontal, register facing up |
| Electrical Rating | 0.01 A @ 24 VAC/DC |
| Electrical Connection | Colour-coded lead wires, 4.5 ft (1.5 m) |
- Perfect for high temperature applications, the high temperature threshold of 190°F (88°C) makes it perfect.
- Even in low flow applications, multi-jet design offers simplicity and accuracy throughout a wide flow range.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are included, making installation simple.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
