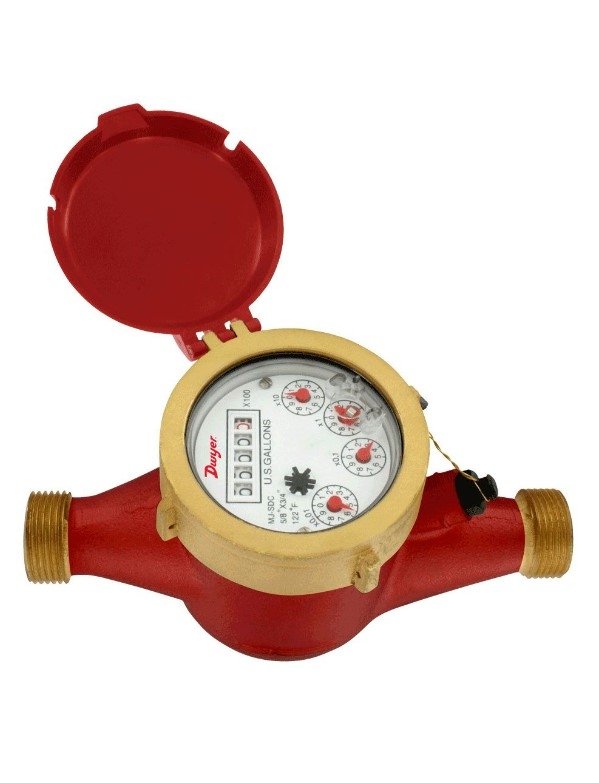

Dwyer WMH-A-C-02-1 | Multi-Jet Hot Water Meter | 5/8" x 3/4", 1 gal/pulse output
The Dwyer WMH-A-C-02-1 is a 5/8" x 3/4" multi-jet hot water meter with a pulse output of 1 gal per pulse, rated for water up to 190°F (88°C). The WMH-A-C-02-1 mechanically totalises water use in gallons, and the WMH series offers NPT or BSPT couplings.
- WMH-A-C-02-1 accuracy: ±1.5% at nominal flow, ±3% at transitional flow
- Pulse output proportional to flow rate, rated 0.01 A @ 24 VAC/DC (WMH-A-C-02-1)
- Colour-coded lead wires, 4.5 ft (1.5 m), on the WMH-A-C-02-1
- All-brass wetted parts on the WMH-A-C-02-1: body, couplings and measuring chamber
- WMH-A-C-02-1 rated to 150 psi (10 bar); install horizontally, register up
- Specifications
- Features
- Downloads
| Part Number | WMH-A-C-02-1 |
| Brand | Dwyer |
| Type | Multi-jet hot water meter |
| Pipe Size | 5/8" x 3/4" |
| Pulse Output | 1 gal per pulse, proportional to flow rate |
| Accuracy | Nominal flow ±1.5%; transitional flow ±3% |
| Max Operating Pressure | 150 psi (10 bar) |
| Max Operating Temperature | 190 °F (88 °C) |
| Wetted Materials | Brass body, couplings and measuring chamber |
| Mounting | Horizontal, register facing up |
| Electrical Rating | 0.01 A @ 24 VAC/DC |
| Electrical Connection | Colour-coded lead wires, 4.5 ft (1.5 m) |
- Perfect for high temperature applications, the high temperature threshold of 190°F (88°C) makes it perfect.
- Even in low flow applications, multi-jet design offers simplicity and accuracy throughout a wide flow range.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Long service life and maintenance-free operation are features of the design.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are included, making installation simple.
- Remote flow totalization is possible thanks to pulsed output proportional to flow.
