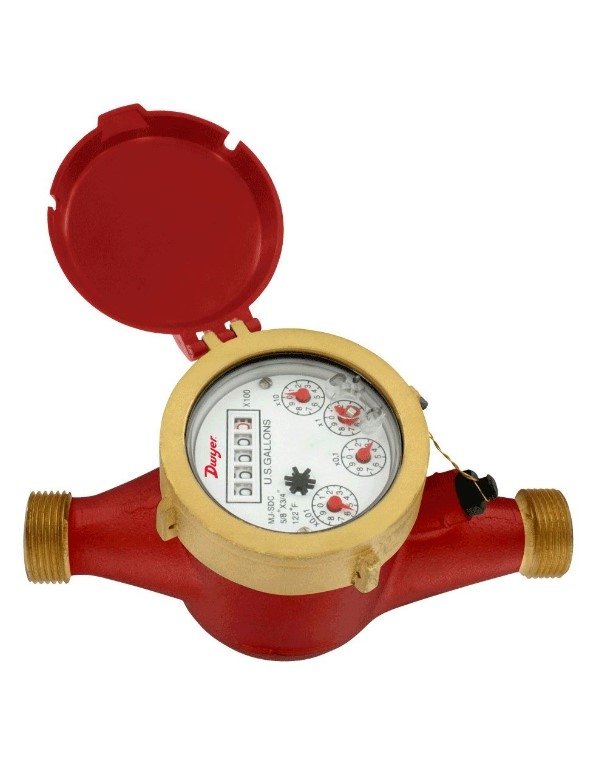

Dwyer WMH-A-C-06 | Multi-Jet Hot Water Meter | 1", 0.1 gal/pulse

Part Number : WMH-A-C-06

Dwyer model WMH-A-C-06 pairs a 1" connection with a 0.1 gal/pulse output for remote totalising. This 1" meter is designed for hot water up to 190°F (88°C) and records volume in gallons, with m³ as an option.

  • WMH-A-C-06 flow ratings: nominal flow 3 to 50, maximum 50, transitional 0.75
  • Accuracy of the WMH-A-C-06: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-A-C-06)
  • Brass body, couplings and measuring chamber on the WMH-A-C-06
  • Pulse wiring on the WMH-A-C-06: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMH-A-C-06 horizontally with the register facing up
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
