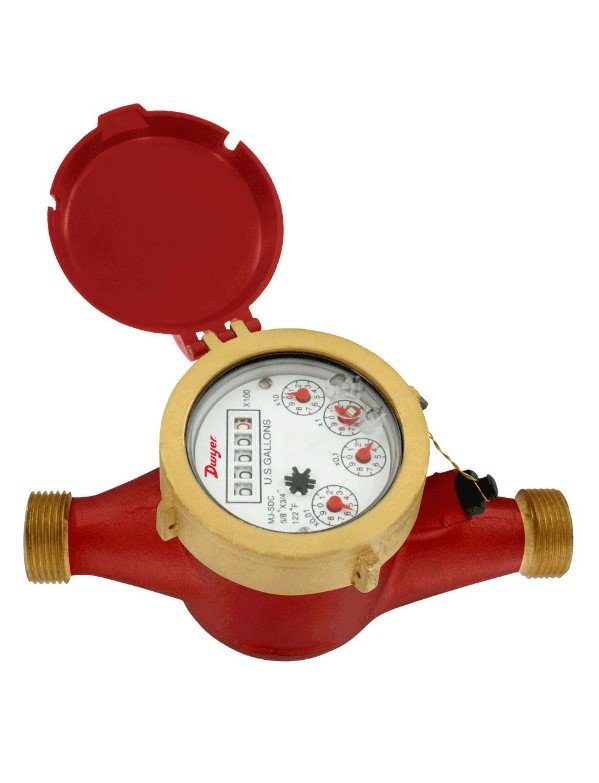

Dwyer WMH-A-C-07-100 | Multi-Jet Hot Water Meter | 1-1/2"

Part Number : WMH-A-C-07-100

Sized for 1-1/2" pipework, the WMH-A-C-07-100 from Dwyer is a multi-jet hot water meter built for hot water service up to 190°F (88°C). The WMH-A-C-07-100 register totalises consumption in gallons, with m³ as an option, while the pulse output feeds counters or controllers.

  • WMH-A-C-07-100 flow ratings: nominal flow 5 to 100, maximum 100, transitional 1.5
  • Accuracy of the WMH-A-C-07-100: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-A-C-07-100)
  • Brass body, couplings and measuring chamber on the WMH-A-C-07-100
  • Pulse wiring on the WMH-A-C-07-100: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMH-A-C-07-100 horizontally with the register facing up
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
