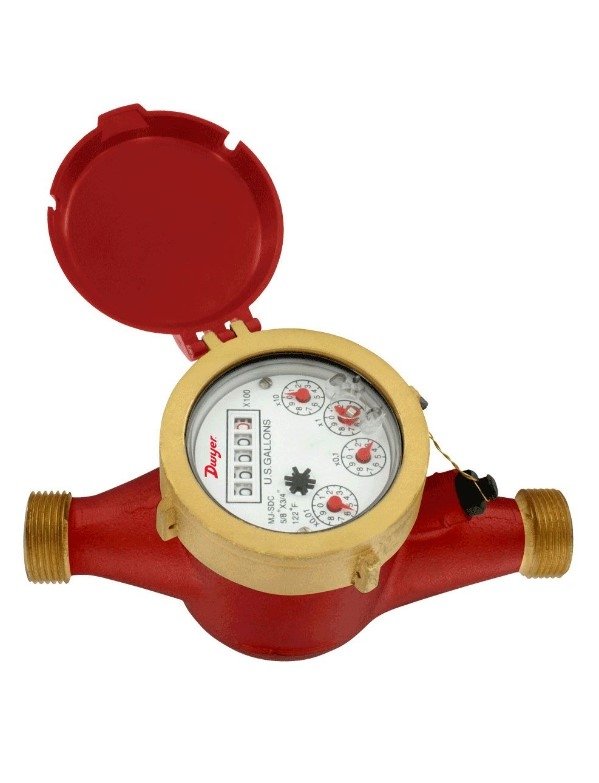

Dwyer WMH-B-C-10-100 | Multi-Jet Hot Water Meter | 20mm, 100 L/pulse

Part Number : WMH-B-C-10-100

Sized for 20mm pipework, the WMH-B-C-10-100 from Dwyer is a multi-jet hot water meter built for hot water service up to 190°F (88°C). The WMH-B-C-10-100 register totalises consumption in gallons, with m³ as an option, while the 100 L/pulse output feeds counters or controllers.

  • Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-B-C-10-100)
  • Brass body, couplings and measuring chamber on the WMH-B-C-10-100
  • Pulse wiring on the WMH-B-C-10-100: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMH-B-C-10-100 horizontally with the register facing up
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
