Dwyer Instruments WMH-B-C-12-1 | Multi-Jet hot water meter | 32mm pipe size | 1 liter pulse output - generaltechuae

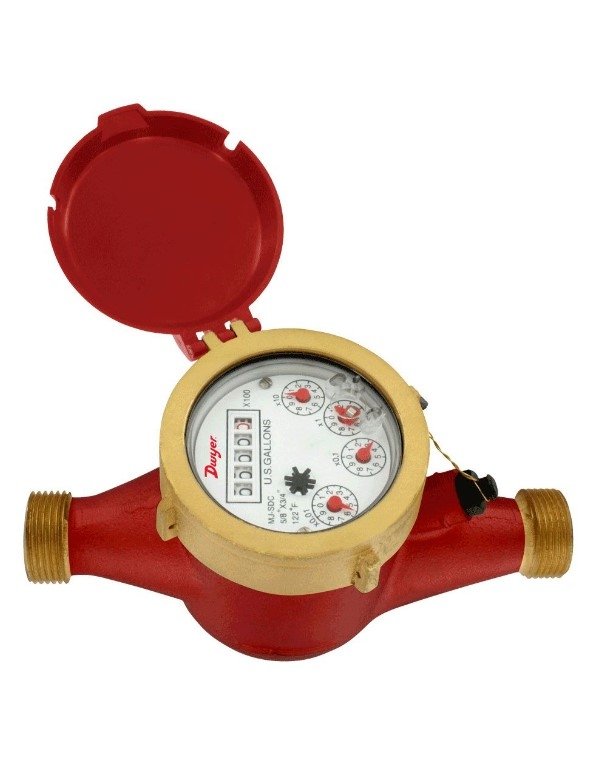

Dwyer WMH-B-C-12-1 | Multi-Jet Hot Water Meter | 32mm, 1 L/pulse

Part Number : WMH-B-C-12-1

Sized for 32mm pipework, the WMH-B-C-12-1 from Dwyer is a multi-jet hot water meter built for hot water service up to 190°F (88°C). The WMH-B-C-12-1 register totalises consumption in gallons, with m³ as an option, while the 1 L/pulse output feeds counters or controllers.

  • Rated to 150 psi (10 bar) and 190°F (88°C) maximum (WMH-B-C-12-1)
  • Brass body, couplings and measuring chamber on the WMH-B-C-12-1
  • Pulse wiring on the WMH-B-C-12-1: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • Install the WMH-B-C-12-1 horizontally with the register facing up
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
