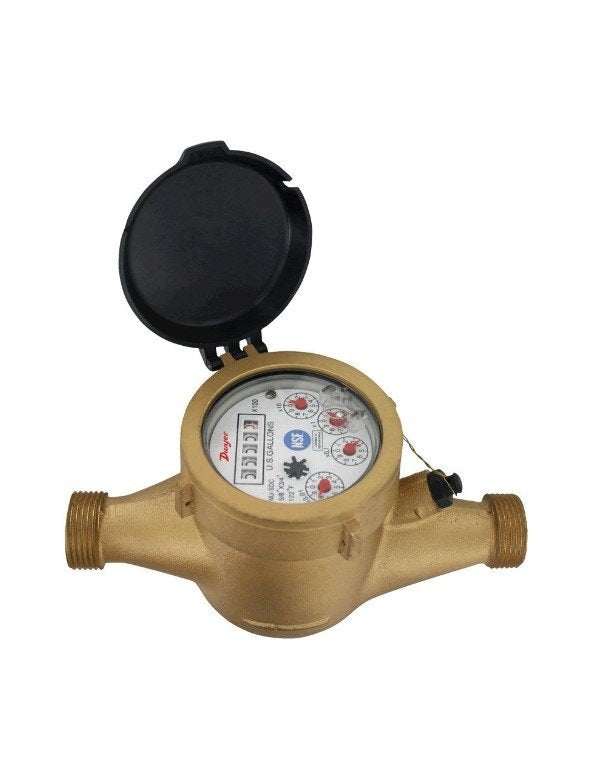

Dwyer Instruments WNT-A-C-01-1 | Multi-Jet water meter | 5/8" x 1/2" pipe size | NSF Certified | Brass body with 1 gal pulse output - generaltechuae

Dwyer WNT-A-C-01-1 | Lead-Free Brass Multi-Jet Water Meter | 5/8" x 1/2", 1 gal/pulse, NSF

Part Number : WNT-A-C-01-1

For 5/8" x 1/2" lines, Dwyer offers the WNT-A-C-01-1 lead-free brass multi-jet water meter, carrying NSF certification for potable water use. On the WNT-A-C-01-1, a mechanical register counts usage in gallons or cubic metres, and the 1 gal/pulse output reports flow to external equipment.

  • WNT-A-C-01-1 flow ratings: nominal flow 1 to 20, maximum 20, transitional 0.25
  • Accuracy of the WNT-A-C-01-1: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 122°F (50°C) maximum (WNT-A-C-01-1)
  • ECO BRASS® body and couplings, ABS measuring chamber on the WNT-A-C-01-1
  • Pulse wiring on the WNT-A-C-01-1: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • WNT-A-C-01-1 weighs 3.58 lb (1.63 kg)
Availability: in stock
