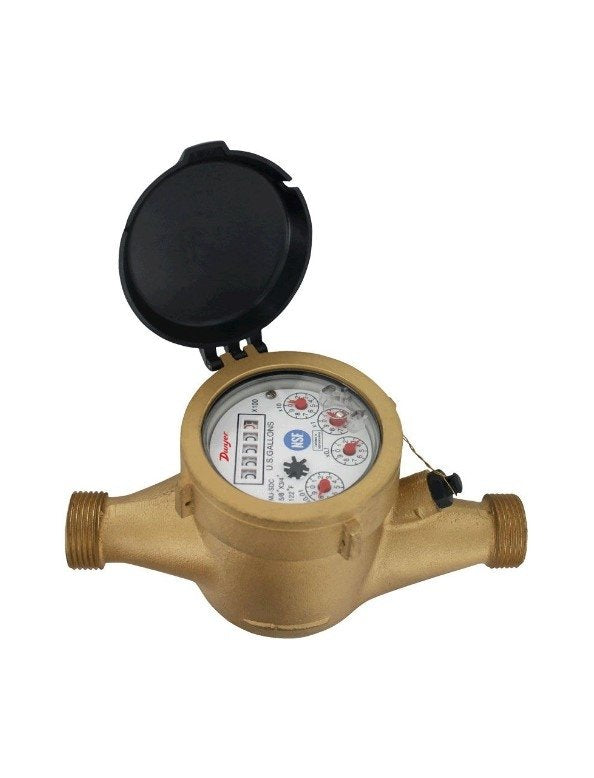

Dwyer WNT-A-C-05 | Lead-Free Brass Multi-Jet Water Meter | 3/4" x 1", 0.1 gal/pulse, NSF

Part Number : WNT-A-C-05

Dwyer model WNT-A-C-05 pairs a 3/4" x 1" connection with a 0.1 gal/pulse output for remote totalising. This 3/4" x 1" meter is NSF certified, with a lead-free body for potable water and records volume in gallons or cubic metres.

  • WNT-A-C-05 flow ratings: nominal flow 2 to 30, maximum 30, transitional 0.5
  • Accuracy of the WNT-A-C-05: ±1.5% nominal flow, ±3% transitional flow
  • Rated to 150 psi (10 bar) and 122°F (50°C) maximum (WNT-A-C-05)
  • ECO BRASS® body and couplings, ABS measuring chamber on the WNT-A-C-05
  • Pulse wiring on the WNT-A-C-05: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
  • WNT-A-C-05 weighs 6.02 lb (2.73 kg)
