Dwyer ZV1024 | 2-Way Zone Valve | 1/2" NPT, 24 VAC, Normally Closed

Name: Dwyer ZV1024 | 2-Way Zone Valve | 1/2" NPT, 24 VAC, Normally Closed
Brand: Dwyer
SKU: ZV1024
Availability: OutOfStock

Part Number : ZV1024

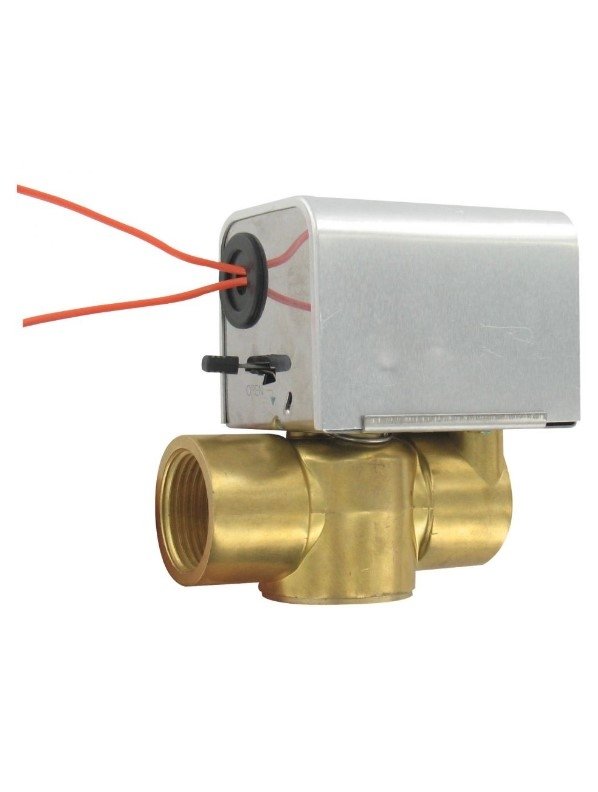

Dwyer model ZV1024 is a 1/2" NPT normally closed two-way zone valve powered from 24 VAC for HVAC hot and cold water control. Zone valves like the ZV1024 work with thermostats to regulate room temperature; this one combines electric drive, spring action and an outside manual override lever.

24 VAC on/off input, 6.5 W power consumption
Opens in 11 seconds and closes in 5 seconds (ZV1024)
300 psi (20.7 bar) maximum; 22 psi (1.5 bar) close-off for the 1/2" NPT size (ZV1024)
Process range 0 to 201°F (0 to 94°C), ambient 32 to 104°F (0 to 40°C) on ZV1024
Aluminium housing; brass, stainless steel and NBR wetted parts (ZV1024)
22 AWG leads, 5 in (127 mm) long (ZV1024)

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	ZV1024
Brand	Dwyer
Type	2-way zone valve, normally closed
Connection	1/2" NPT
Voltage	24 VAC
Actuation	Electric with spring action
Input	On/off
Cycle Time	Open 11 s; close 5 s
Max Pressure	300 psi (20.7 bar)
Close-off Pressure	22 psi (1.5 bar)
Process Temperature	0 to 201°F (0 to 94°C)
Housing	Aluminium
Wetted Materials	Brass, stainless steel, NBR
Power Consumption	6.5 W

The ZV1 Series Zone Valves are designed for flow control in hot and cold water HVAC (Heating, Ventilation, and Air Conditioning) systems, making them ideal for regulating room temperature.
Typically used alongside a thermostat, these zone valves help regulate room temperature by controlling the flow of hot or cold water in HVAC systems.
The ZV1 valves are electrically driven to open and spring to close, ensuring precise and efficient flow control in HVAC systems.
Available in sizes of 1/2", 3/4", and 1", providing versatility to fit various pipe diameters and flow requirements.
Units are available with 24 or 120 VAC power supply options, accommodating different electrical setups and voltage standards.
These units are easy to install and serve as direct replacements for competitor units, reducing installation time and complexity.
Equipped with a manual override lever that is easily accessible externally, allowing for manual operation in case of power failure or maintenance needs.
