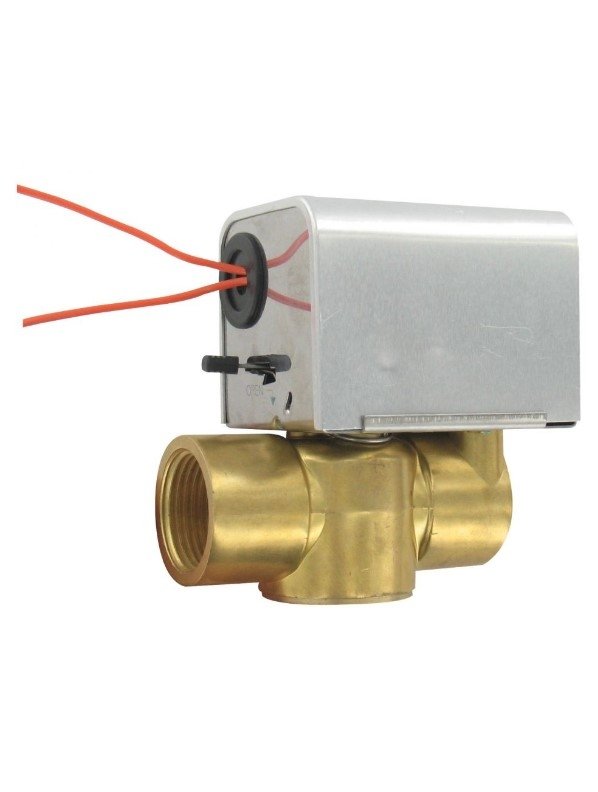

Dwyer ZV1032-NO | 2-Way Zone Valve | 3/4" NPT, 120 VAC, Normally Open
Part Number : ZV1032-NO
The Dwyer ZV1032-NO is a normally open two-way zone valve with 3/4" NPT connections and a 120 VAC supply, used to control hot or cold water flow in HVAC systems. Typically wired to a room thermostat, the ZV1032-NO uses electric drive with spring action and carries an external manual override lever.
- 120 VAC on/off input, 6.5 W power consumption
- Opens in 11 seconds and closes in 5 seconds (ZV1032-NO)
- 300 psi (20.7 bar) maximum; 22 psi (1.5 bar) close-off for the 3/4" NPT size
- Process range 0 to 201°F (0 to 94°C), ambient 32 to 104°F (0 to 40°C) on ZV1032-NO
- Aluminium housing; brass, stainless steel and NBR wetted parts (ZV1032-NO)
- 22 AWG leads, 5 in (127 mm) long (ZV1032-NO)
