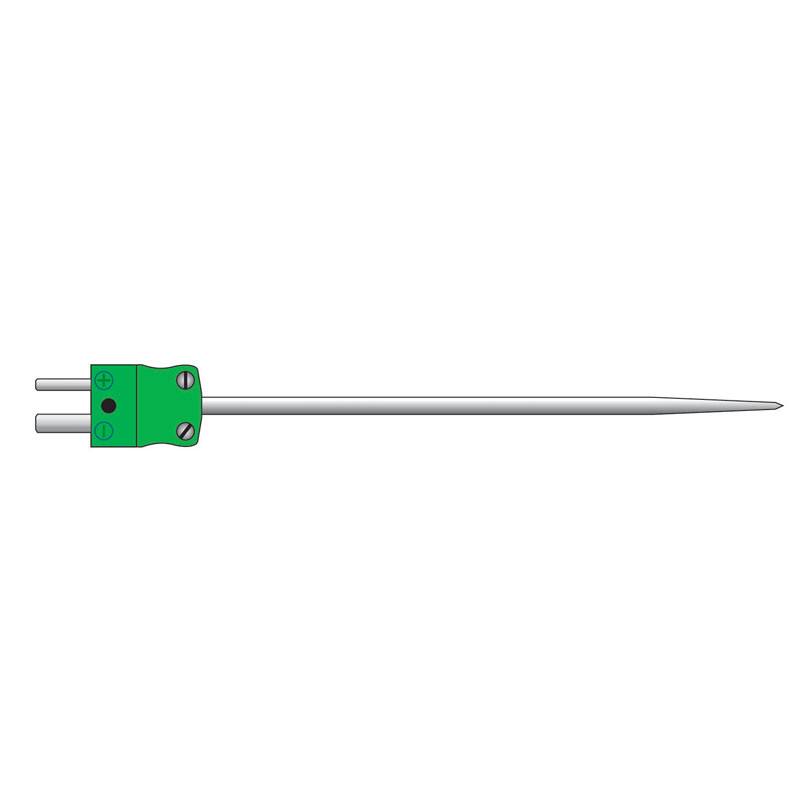

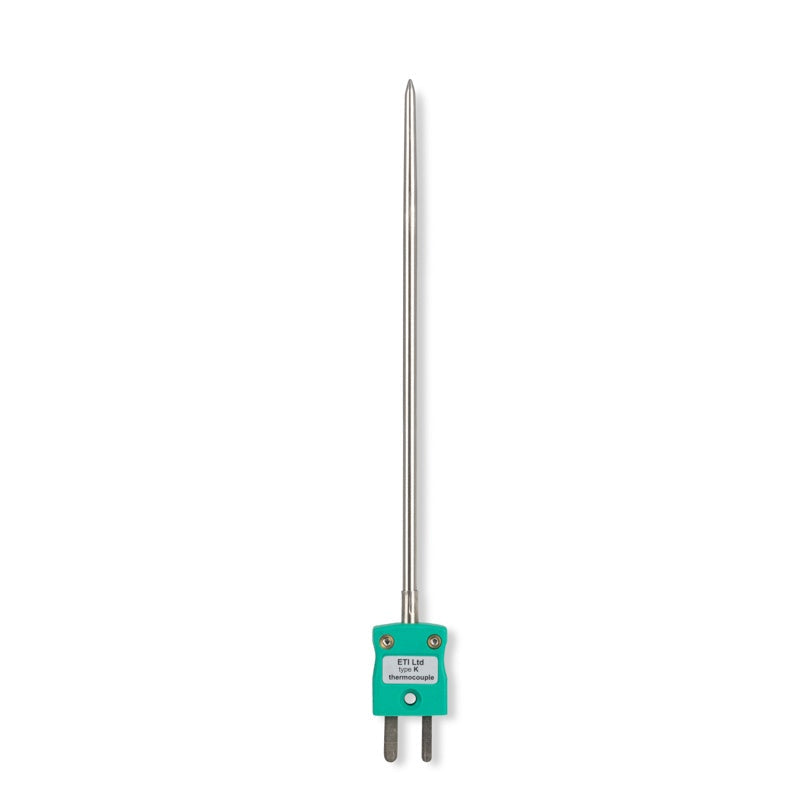

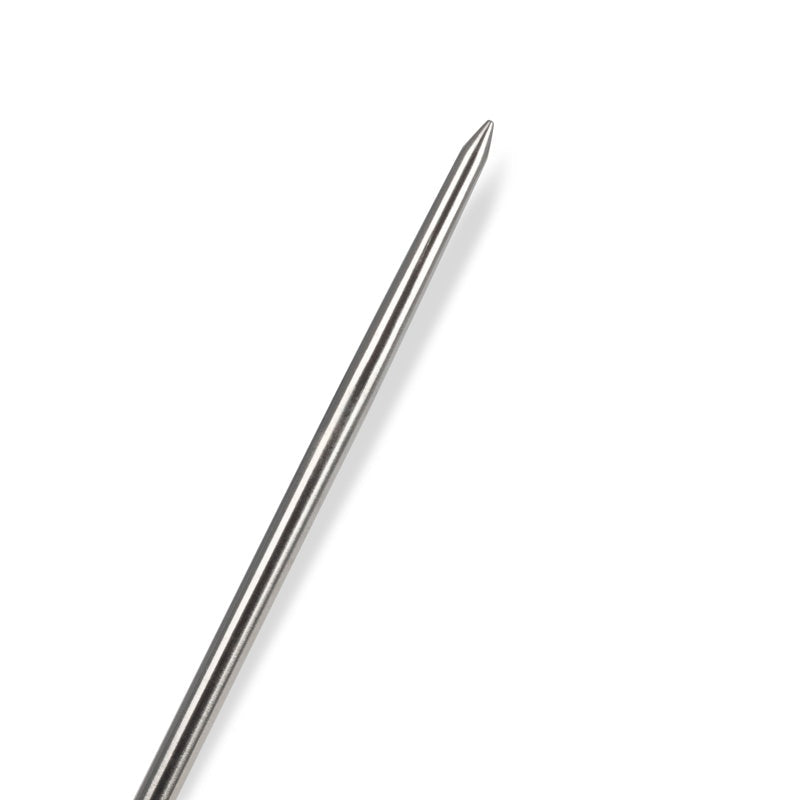

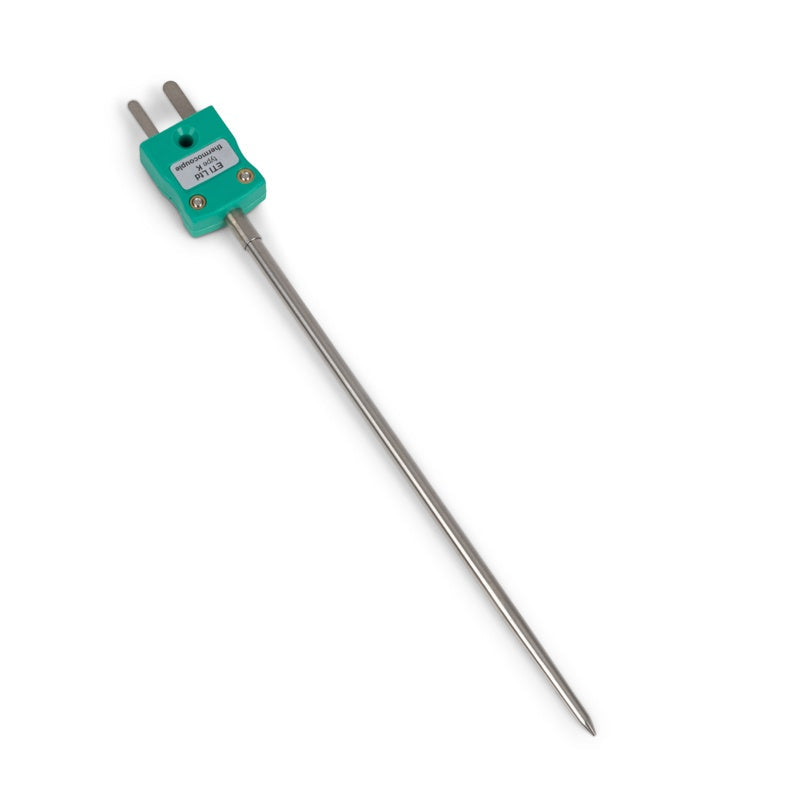

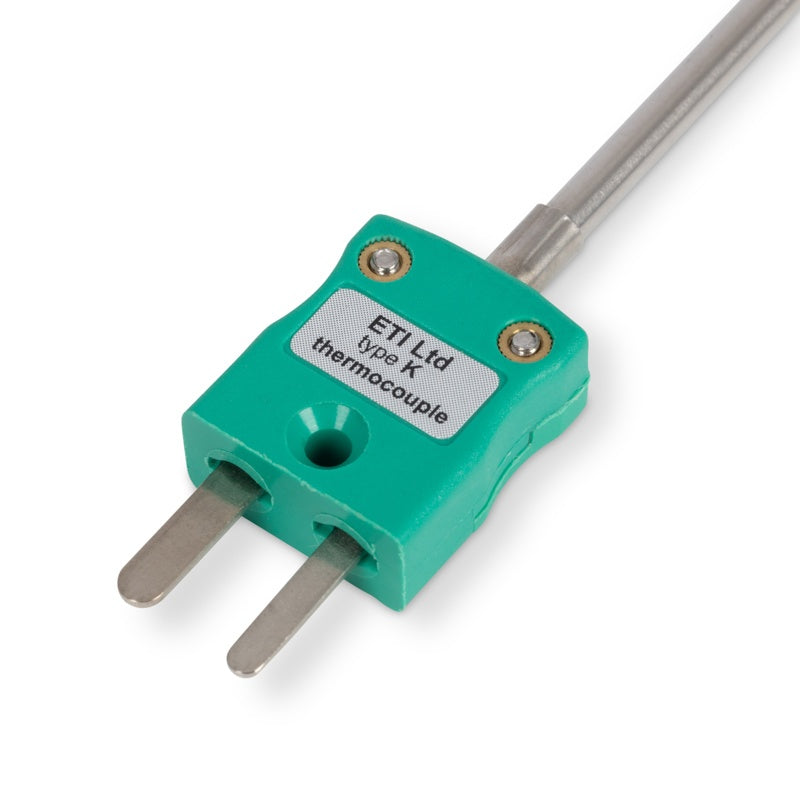

ETI 133-161 | Plug-Mounted Stainless Steel Penetration Probe | Type K, Ø3.3 x 120 mm

Name: ETI 133-161 | Plug-Mounted Stainless Steel Penetration Probe | Type K, Ø3.3 x 120 mm
Brand: eti
SKU: 133-161
Availability: OutOfStock

Part Number : 133-161

The ETI 133-161 is the type K version of ETI's plug-mounted stainless steel penetration probe. The Ø3.3 x 120 mm probe has a maximum tip temperature of 250 °C and an accuracy of ±0.5 °C between 0 and 100 °C. It is designed for use with the 323-950 probe handle; a type T version is listed as 137-161.

Key features

Type K thermocouple
Stainless steel, plug-mounted design
Accuracy ±0.5 °C (0 to 100 °C)
Maximum tip temperature 250 °C
For use with the 323-950 probe handle

Availability: in stock

Specifications
Downloads

Part Number	133-161
Brand	ETI
Thermocouple Type	Type K
Material	Stainless steel
Probe Dimensions	Ø3.3 x 120 mm
Max Tip Temperature	250 °C
Accuracy	±0.5 °C (0 to 100 °C)
Response Time	Less than 2-3 seconds (sources differ)
Handle	323-950 (sold separately)
