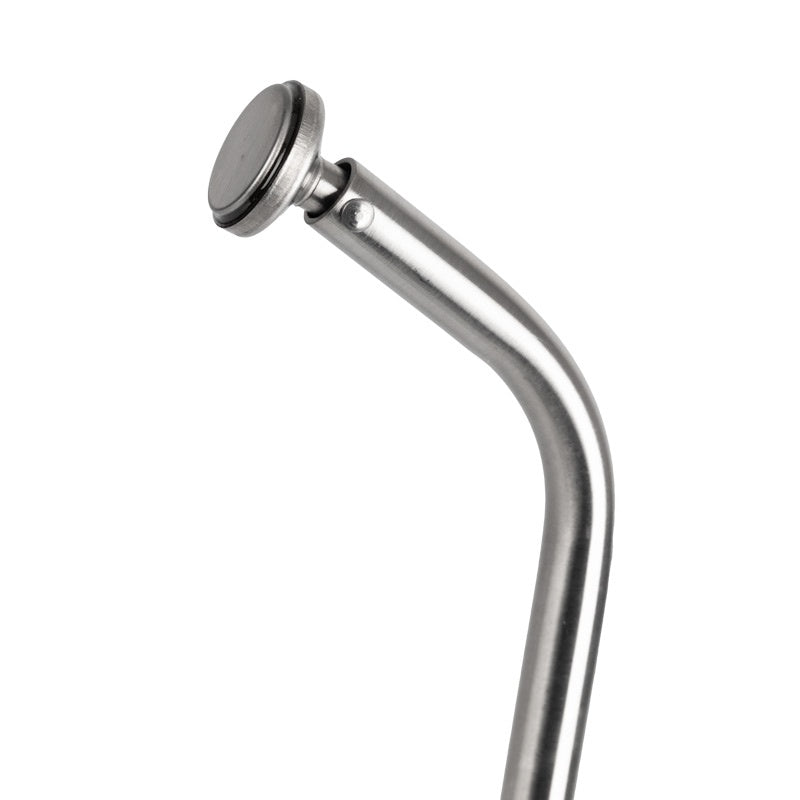

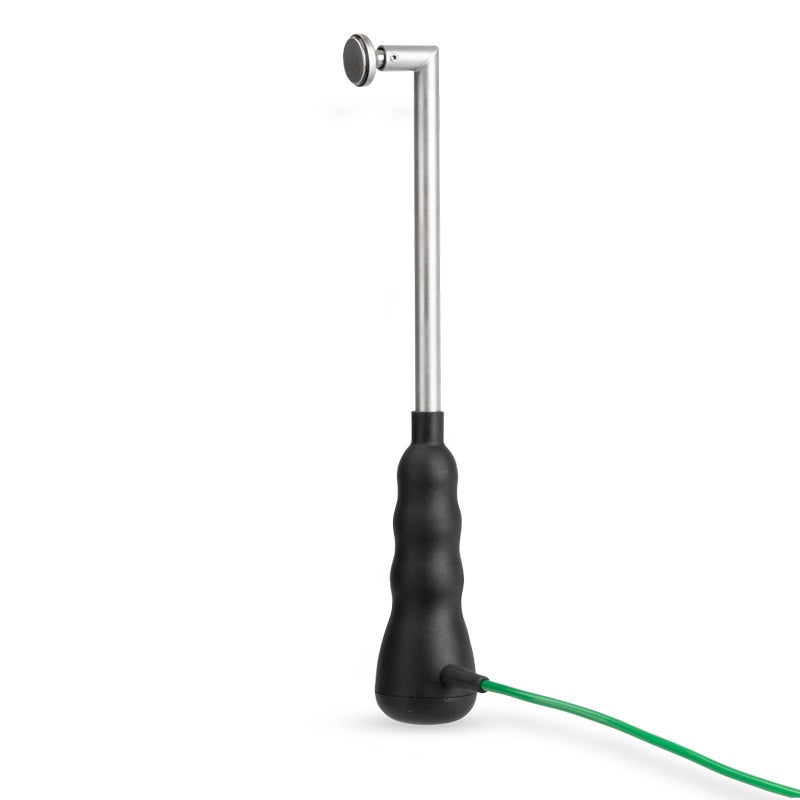

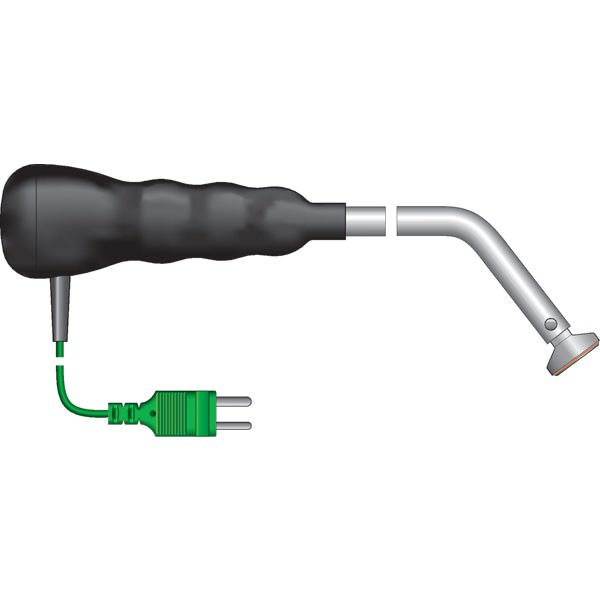

ETI 143-086 | Waterproof Bell Surface Temperature Probe | 90°, straight lead, Type K
ETI 143-086 has its bell sensor set at 90° to the handle, useful when the surface sits directly below or beside the hand. It is a waterproof Type K probe with a straight lead, covering -75 to 200 °C with accuracy to BS EN 60584-1:2013.
Key features
- 90° angled probe, straight lead
- Accuracy to BS EN 60584-1:2013
- Less than 5 s response
- Waterproof bell surface tip
- Specifications
- Downloads
| Part Number | 143-086 |
| Brand | ETI |
| Sensor Type | Type K thermocouple |
| Probe Angle | 90° |
| Lead | Straight |
| Range | -75 to 200 °C |
| Accuracy | To BS EN 60584-1:2013 |
| Response Time | Less than 5 s |
| Dimensions | Ø19 x 130 mm |
