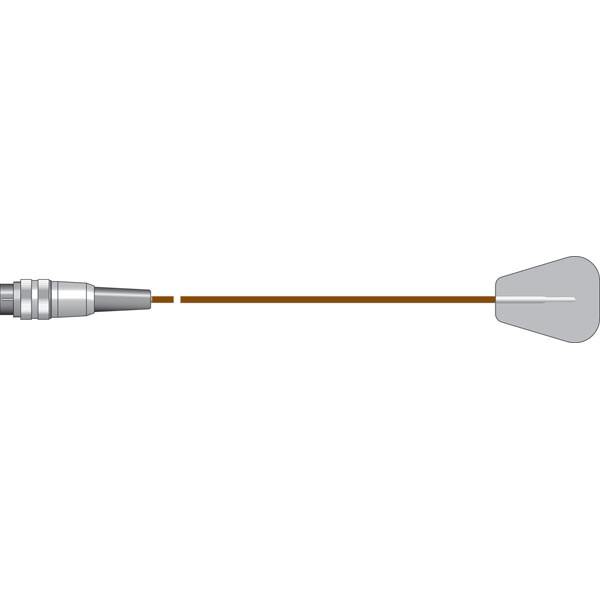

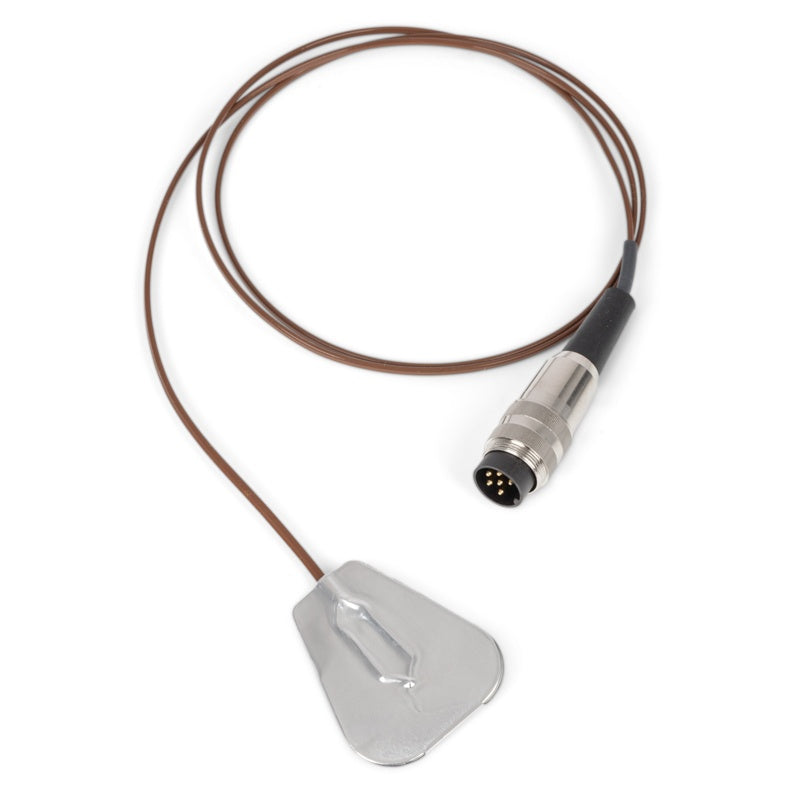

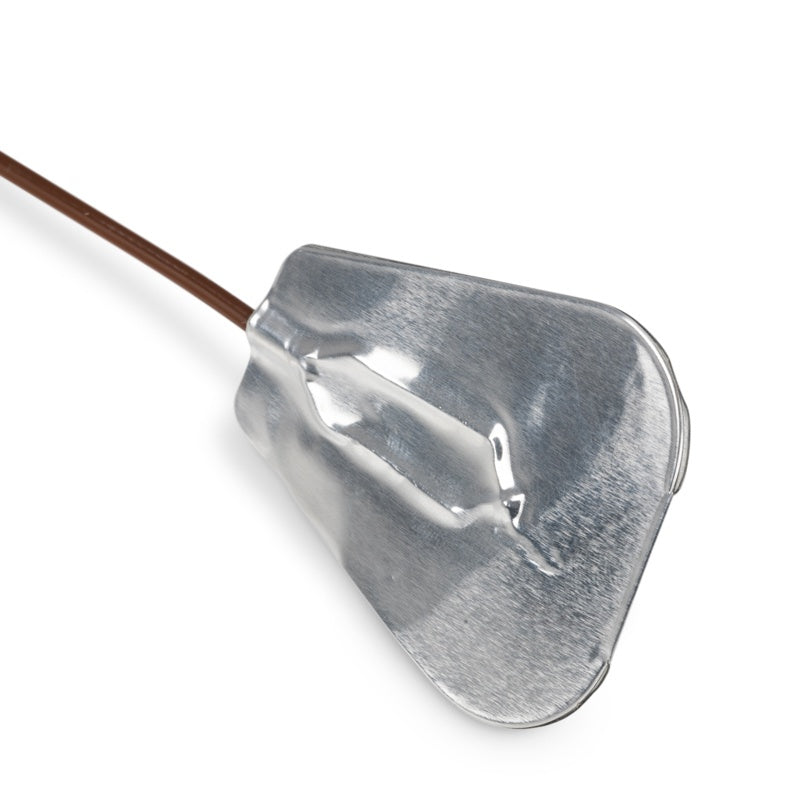

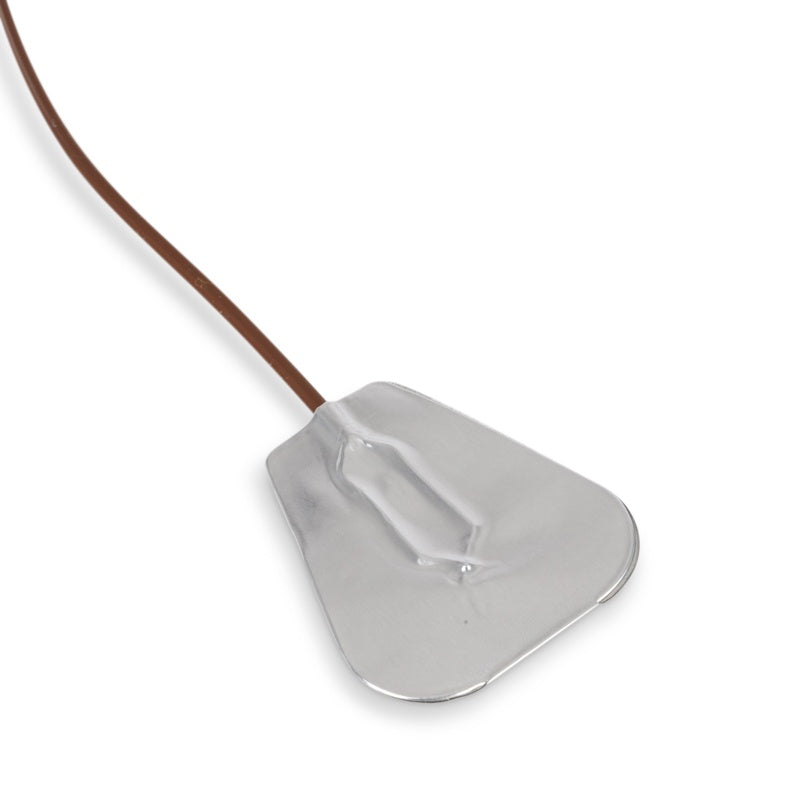

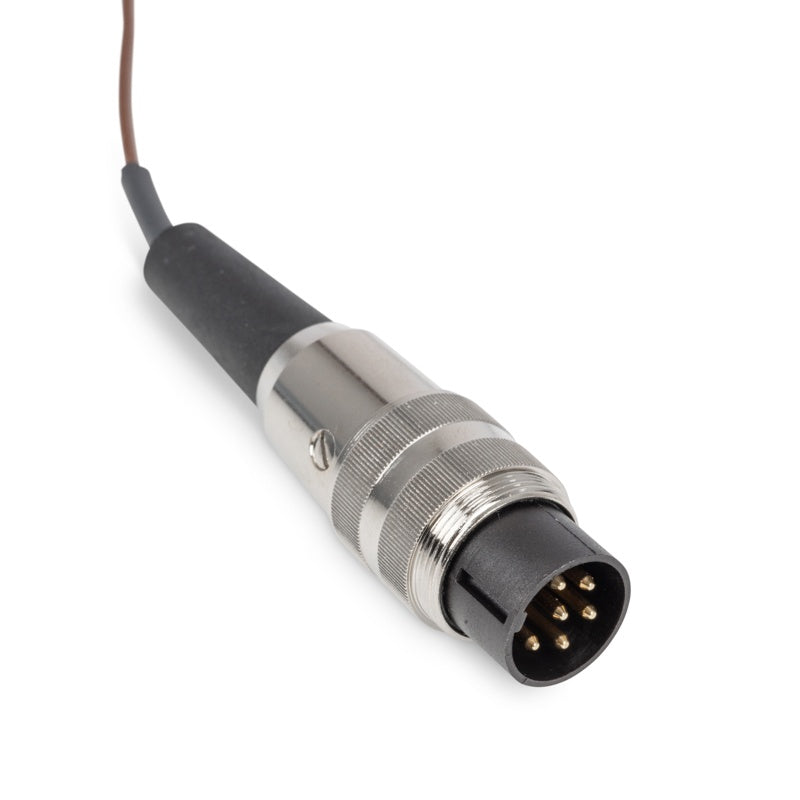

ETI 177-090 | Foil Between Pack Temperature Probe | Type T, 40 x 50 mm, 1 m PTFE lead
The ETI 177-090 is a type T thermocouple version of the foil between-pack probe. Its 40 x 50 mm foil sensor is placed between packs and boxes to check stored or delivered goods without breaking packaging, and it responds in less than 2 seconds. The probe tolerates up to 250 °C, is accurate to BS EN 60584-1:2013 and has a 1 m PTFE lead.
Key features
- Type T thermocouple foil sensor
- 40 x 50 mm, slides between packs and boxes
- Response under 2 seconds
- Maximum probe temperature 250 °C
- 1 m PTFE lead; accuracy to BS EN 60584-1:2013
- Specifications
| Part Number | 177-090 |
| Brand | ETI |
| Sensor Type | Type T thermocouple |
| Probe Dimensions | 40 x 50 mm foil |
| Maximum Probe Temperature | 250 °C |
| Response Time | Less than 2 seconds |
| Accuracy | To BS EN 60584-1:2013 |
| Lead | 1 m PTFE |
