Flexbar 13198 | Drillguard-LED Drill Press Guard | 12V Wall Transformer

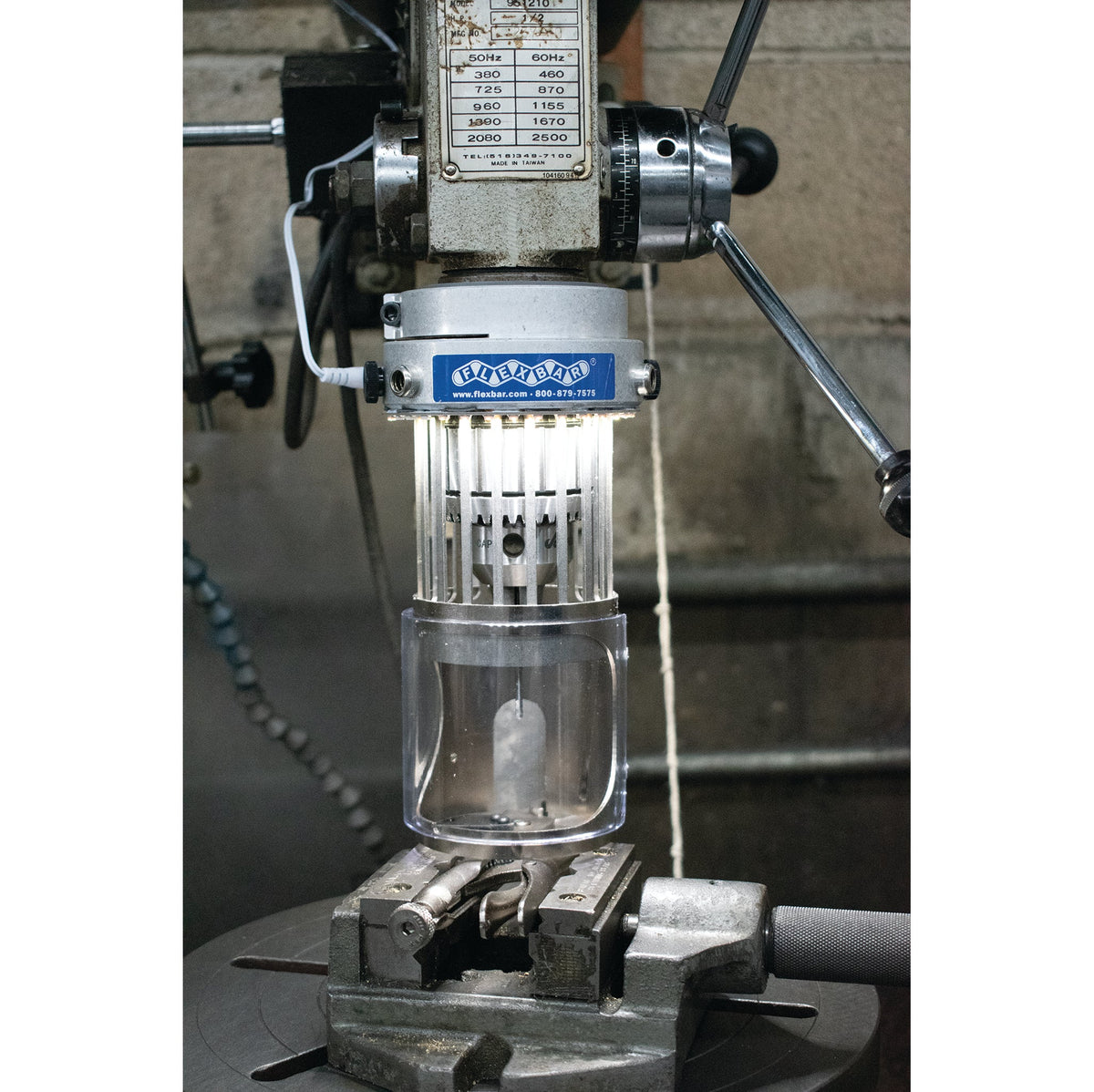

Flexbar 13198 is the mains-powered Drillguard-LED, supplied with a 12V direct wire wall transformer on an 8 ft cable with on/off switch. As the spindle comes down, its window-caged housing telescopes upward on spiral guide grooves so the drill stays enclosed, and an LED ring illuminates the cut. Standard fit is 2.626 to 2.75 in quills, extendable down to 2 in with bushings.
Key features
- 12V direct wire wall transformer, 8 ft cable with on/off switch
- Annular LED ring lighting at 6000K, CRI 90, 170° beam
- Water and coolant proof lighting

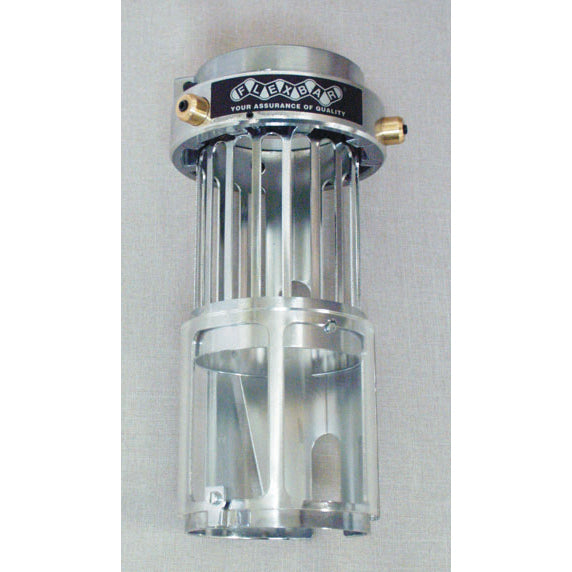

- Inner cage protects the window, and the operator, from metal slivers

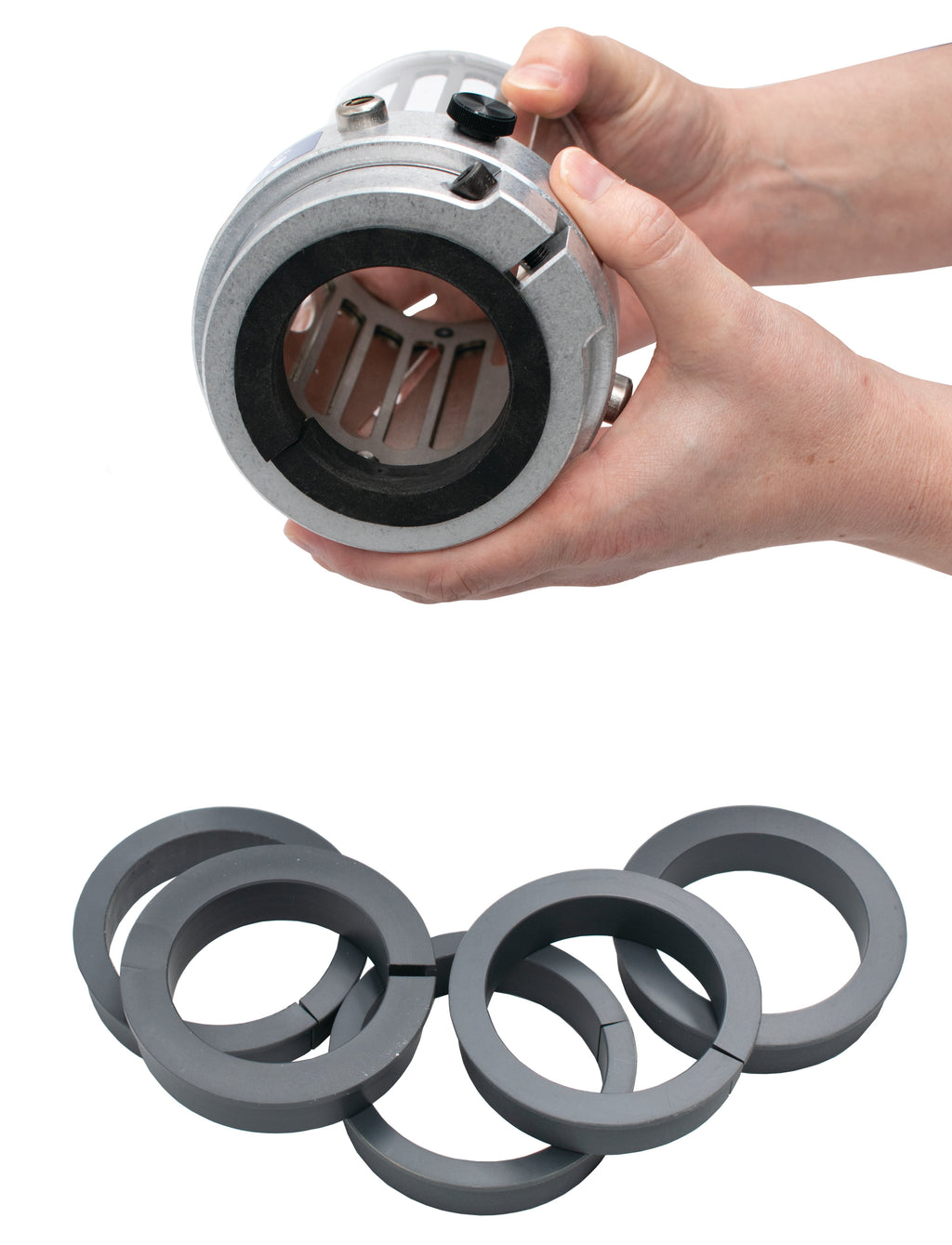

- Quick drill changes: housing releases from three spring-loaded ball catches
- Specifications
- Downloads
| Part Number | 13198 |
| Brand | Flexbar |
| Power Supply | 12V direct wire wall transformer |
| Cable | 8 ft with on/off switch |
| Quill Fit | 2.626–2.75 in (bushings to 2 in) |
| Lighting | Annular LED ring, 6000K, CRI 90 |
| Beam Angle | 170° |
| Quill Ring | Die-cast aluminium |
| Protection | Water and coolant proof |
