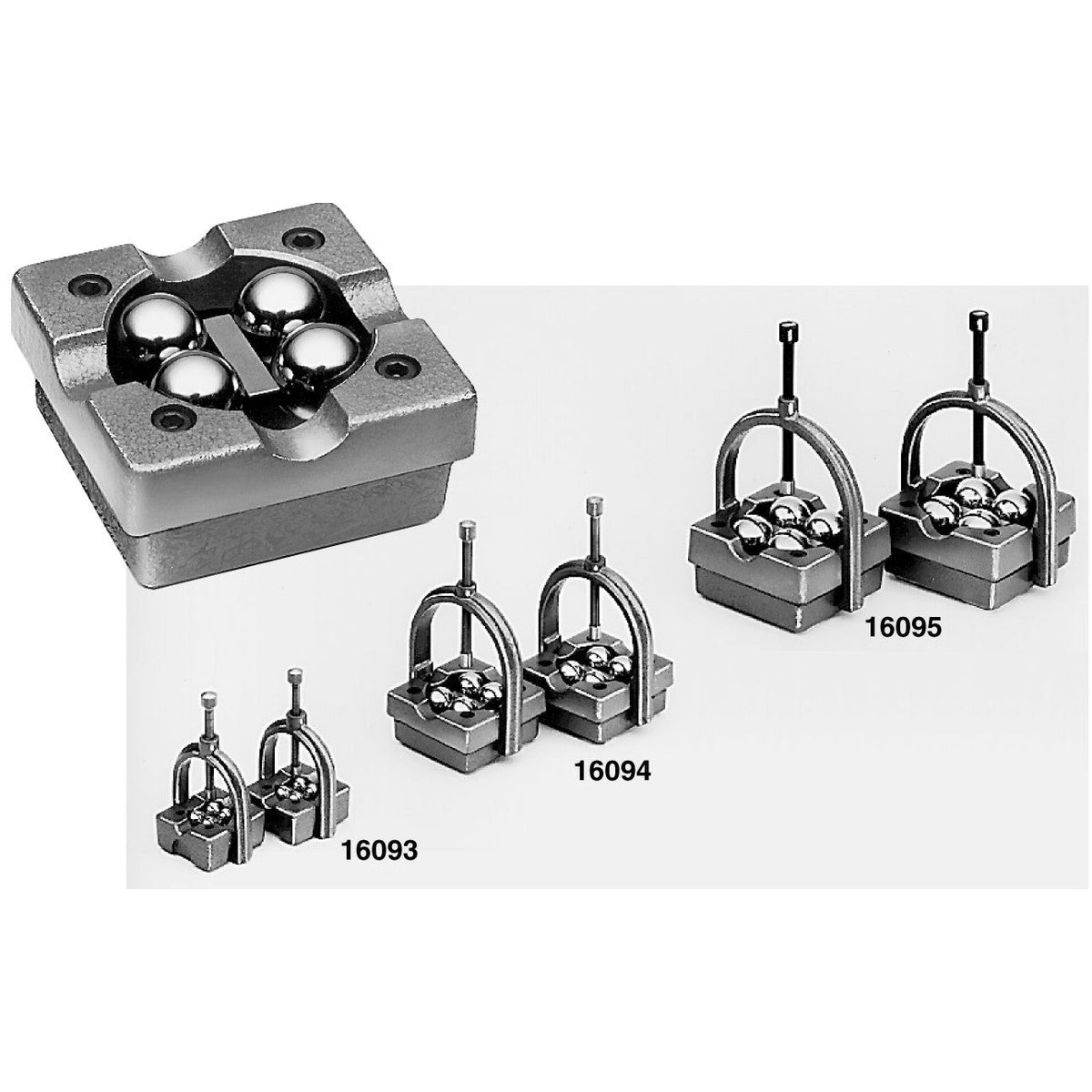

Flexbar 16095 | Ball Bearing V-Block with Clamps | Large 4¾ x 4¾ x 2⅜ in
Part Number : 16095
The large Flexbar 16095 ball bearing V-block pair (4¾ x 4¾ x 2⅜ in) is listed for diameters from 3/16 in to 15 in and comes with clamps and a test ball. Its fixed balls provide multiple bearing points so roundness and lobing can be checked on large work, and the clamps are supplied for use when machining.
Key features
- Ball sphericity 50 millionths of an inch
- Overall accuracy of matched pair ±5 microns
- Balls Rockwell C-62, 0.2 microinch surface finish; calibrated balls certified
- Heat-stabilised, seasoned Class 40 cast iron base and housing
- 8 contact points per pair; one precision spacer per block gives two angles per pair
Note: the balls are fixed in the blocks and are not designed to rotate in use.
For pricing, please contact our experts.
