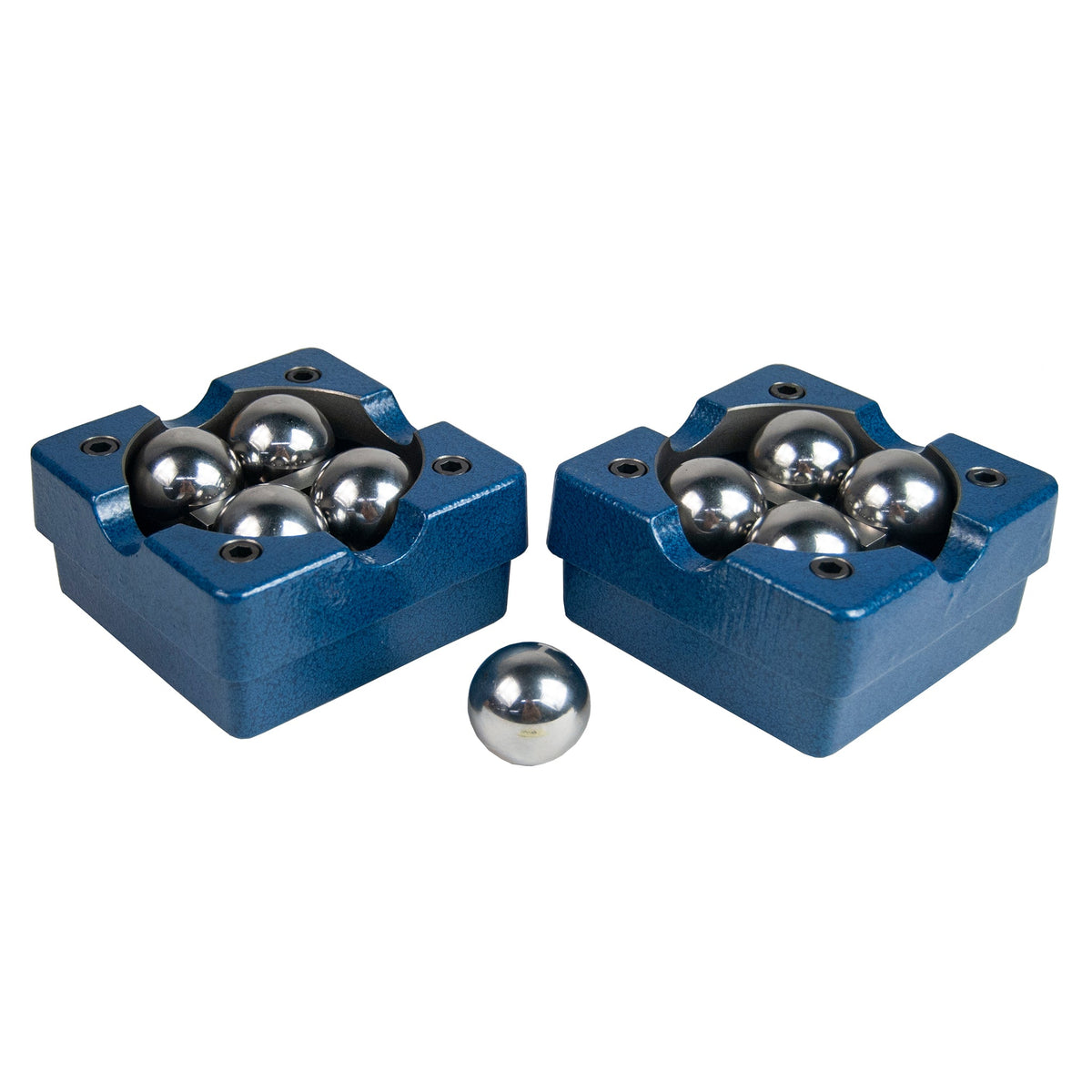

Flexbar 16099 | Ball Bearing V-Block | Large 4¾ x 4¾ x 2⅜ in, No Clamps
Part Number : 16099
Flexbar 16099 is the large 4¾ x 4¾ x 2⅜ in ball bearing V-block pair in the version without clamps, supplied with a test ball. Flexbar lists the large size for diameters from 3/16 in up to 15 in, for inspecting round work for out-of-roundness and lobes.
Key features
- Ball sphericity 50 millionths of an inch
- Overall accuracy of matched pair ±5 microns
- Balls Rockwell C-62, 0.2 microinch surface finish; calibrated balls certified
- Heat-stabilised, seasoned Class 40 cast iron base and housing
- 8 contact points per pair; one precision spacer per block gives two angles per pair
Note: the balls are fixed in the blocks and are not designed to rotate in use.
For pricing, please contact our experts.
