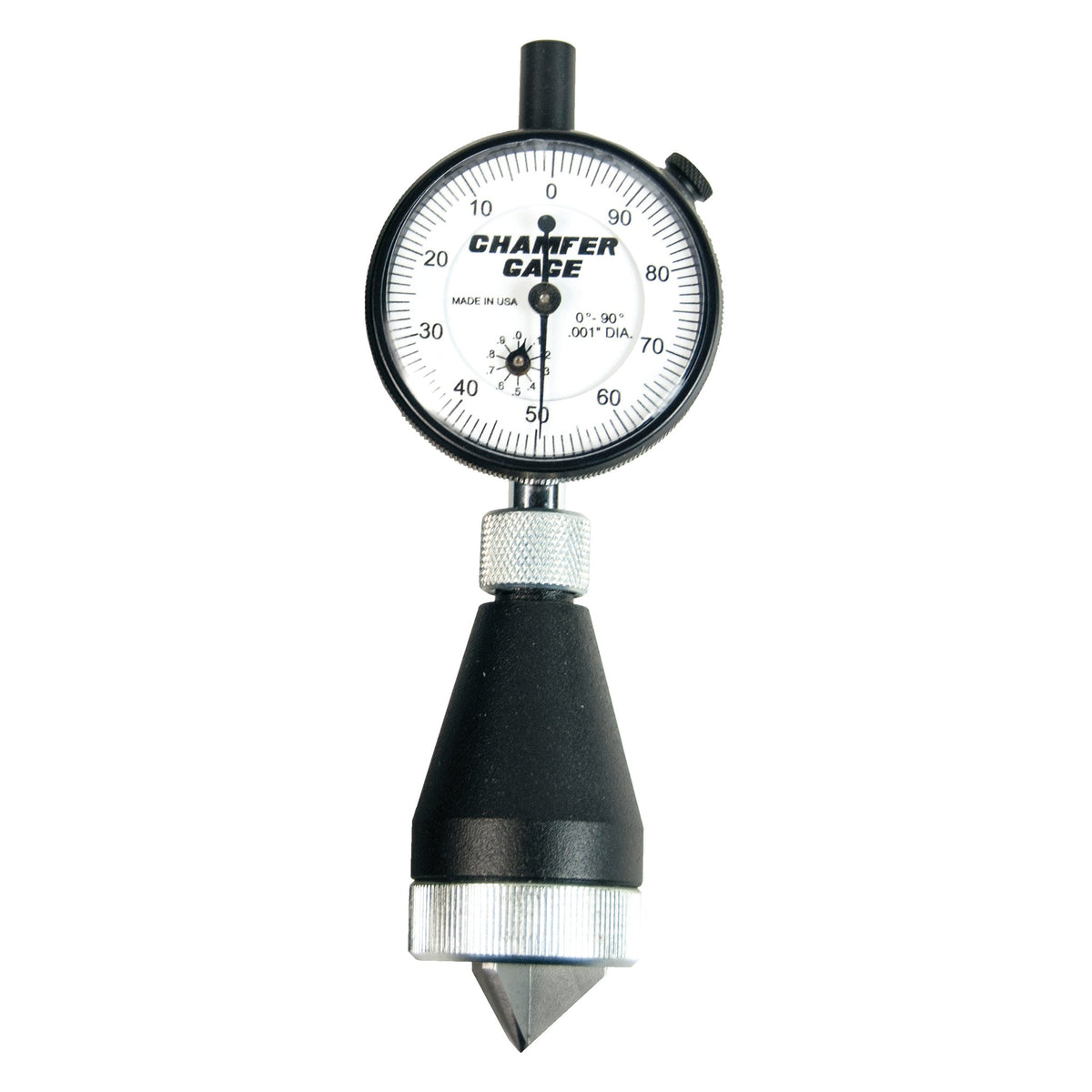

Flexbar 16340 | Chamfer Gauge | 0-90°, 0-1 in
Part Number : 16340
Flexbar 16340 is a dial chamfer gauge covering a 0-1 in diameter capacity with a 0-90° angle range. It reads the diameter of chamfers and tapered holes directly from the dial, in inch units to 0.001 in. Typical jobs include in-process and final inspection of countersinks and chamfered bores.
Key features
- Capacity 0-1 in, angle range 0-90°
- Direct diameter reading to 0.001 in
- Hardened, precision-ground three-blade steel plunger for repeatable readings
- Zeroed on a surface plate; no setting masters needed
- For tapered holes whose included angle is less than the angle printed on the dial
To measure, hold the gauge just above the large body diameter, insert the plunger into the hole, press firmly against the part and twist slightly to centre it.
For pricing, please contact our experts.
