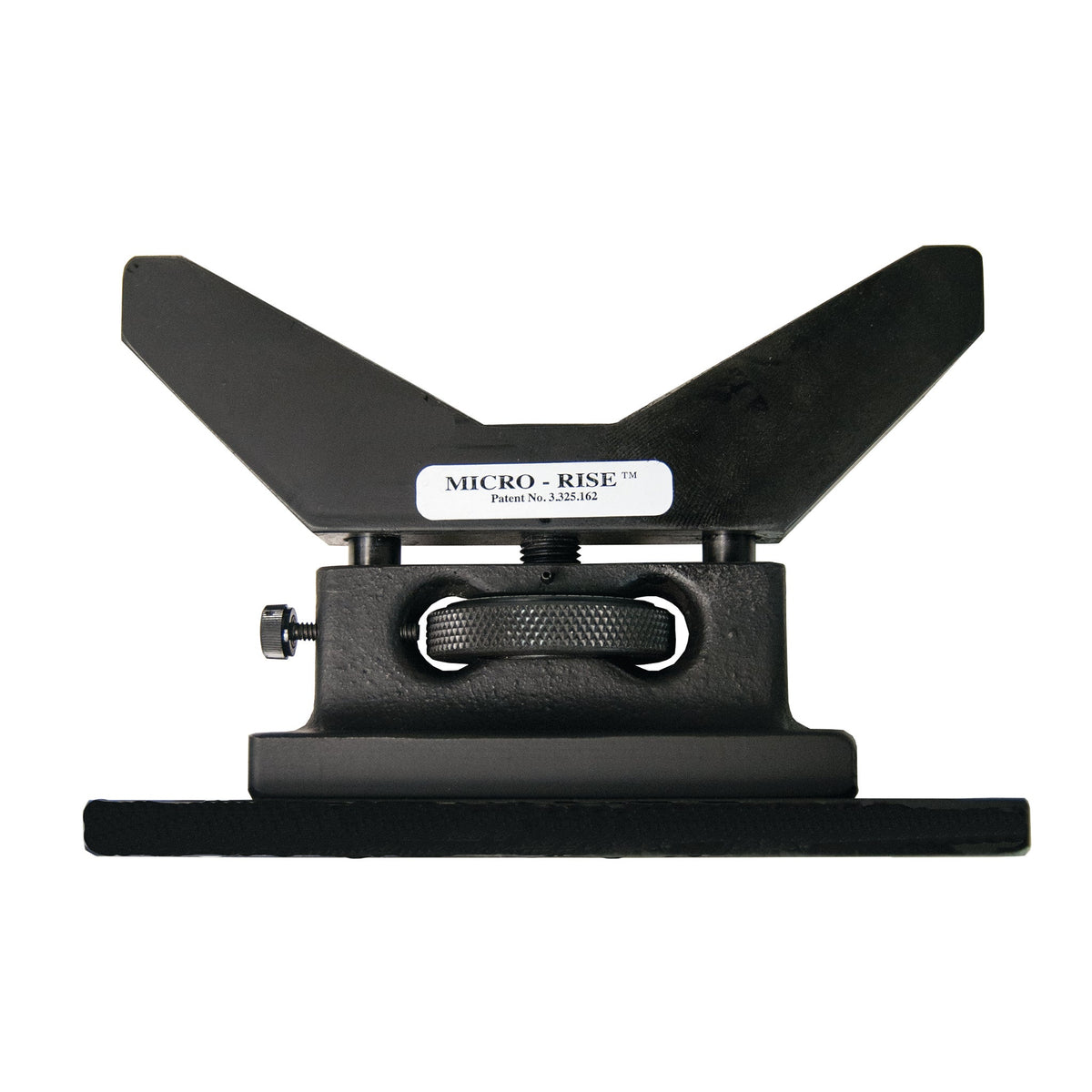

Flexbar 16513 | Extra-Large Micro-Rise Adjustable V-Blocks | 5-10 in Capacity
Part Number : 16513
Flexbar 16513 is the Extra-Large Micro-Rise, a high precision adjustable V-block that Flexbar lists for large diameter applications with a 5 in to 10 in capacity. The wide-angle V is quoted as accepting 3/16 in to 5 in diameters, and the top flats are ground parallel to the base so wide, flat parts can also be held. The V rises a total of 1/2 in at 0.050 in per revolution, read on a dial graduated in 0.001 in.
Key features
- Hardened and ground anvils support up to 1,000 lb
- Top flats ground parallel to base; narrow flats can be held on a parallel across the top
- Vibration (position) lock prevents creeping
- 1/2 in total rise, 0.050 in per revolution, dial in 0.001 in increments
- Also offered with metric screw and dial
For pricing, please contact our experts.
