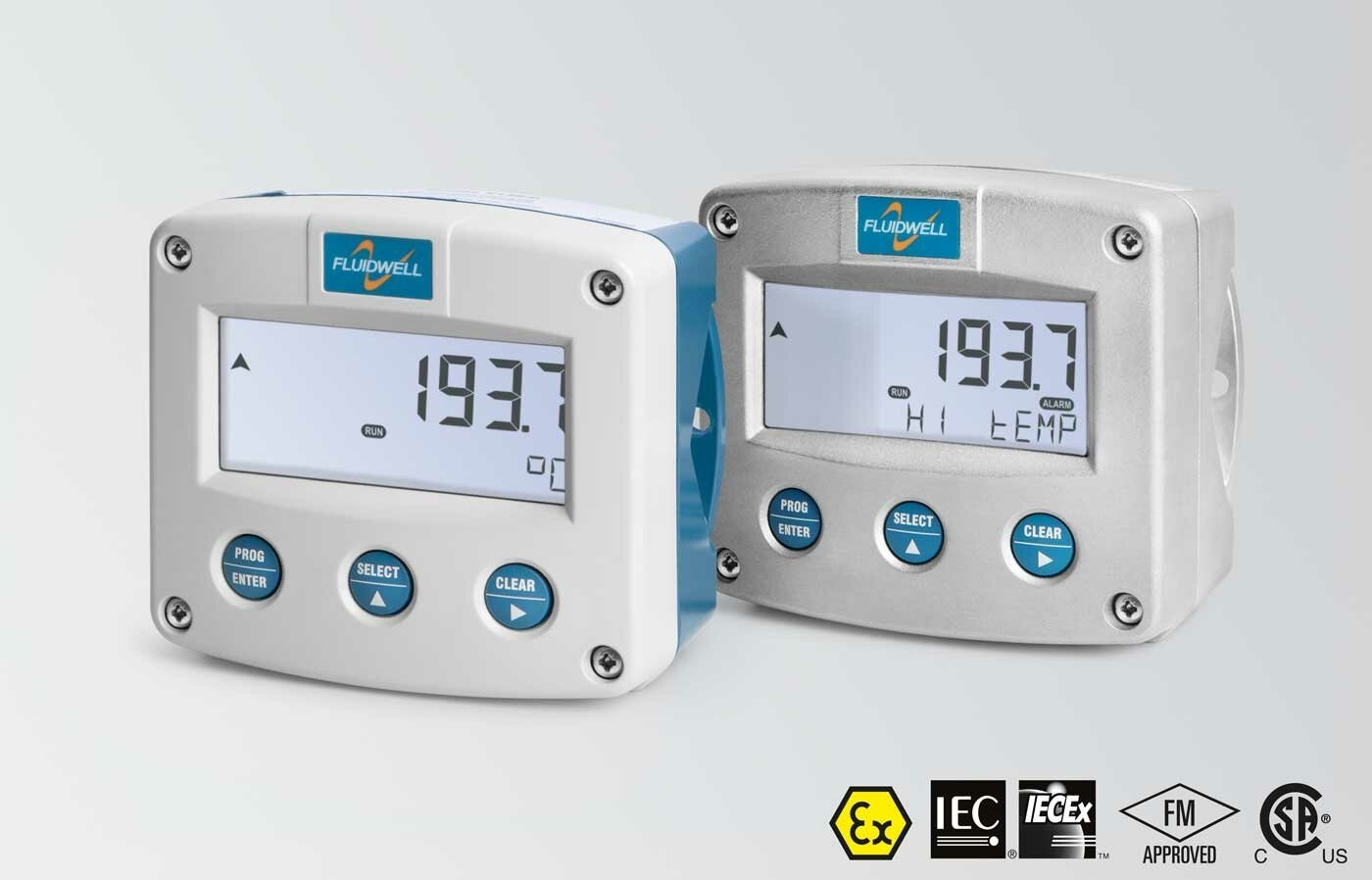

Fluidwell F043 | Intrinsically Safe Temperature Monitor | with one high / low alarm output, ambient -40°C to +70°C
The F043 is a versatile temperature indicator with continuous temperature monitoring feature. It has one low temperature and one high temperature alarm value. If desired, an ignore (delay) function can be set up to allow for an incorrect temperature for a certain period of time. Typical use: For applications where continuous temperature measurement and monitoring is important without signal re-transmission.
Key features
- The display shows the actual temperature, alarm values, alarm messages and status.
- On-screen engineering units are easily configured from a comprehensive selection.
- Displays clear alarm messages.
- Red flashing LED backlight in case of a temperature alarm; intensity adjustable.
- Selectable on-screen engineering units: °C - °F - K.
- Temperature: six large 17mm (0.67") digits.
- Temperature monitoring: two alarm values can be set: low and high temperature alarm.
- Specifications
- Features
- Downloads
| Part Number | F043 |
| Brand | Fluidwell |
| Product Type | Temperature Monitor |
| Enclosure / Area | Safe area / Intrinsically safe |
| Ambient Temperature | -40 °C to +70 °C (-40 to 158 °F) |
| Supply - Power Supply | Long life Lithium battery.; 4 – 20mA, input Loop-powered.; 8 – 24V AC/DC.; 115 – 230V AC.; Basic: 8 - 30V DC. |
| Supply - Sensor Supply | 8.2, 12, 24V DC. |
| Hazardous Area - Intrinsically Safe | ATEX: Gas: II 1 G Ex ia IIC T4 Ga Dust: II 1 D Ex ia IIIC T200 100 °C Da; IECEx: Gas: Ex ia IIC T4 Ga Dust: Ex ia IIIC T200 100 °C Da; CSA: I.S. Class I/II/III, Div 1, Grp A...G, T4 Class I, Zone 0, AEx ia IIC T4 Ga Note: Extended aluminum enclosures not available with CSA/FM approval. |
| Signal Outputs - Alarm Outputs | Function: Configurable alarm output for high, low or both combined temperature alarms.; Type: One passive NPN transistor, active PNP transistor or isolated electro-mechanical relay. |
| Signal Inputs - Temperature Inputs | PT100 - 2, 3 or 4 wire PRTD sensor.; (0)4 – 20mA. |
- The temperature as it is, alarm values, alert messages, and status are all displayed on the display.
- From a wide assortment, on-screen engineering units are simple to configure.
- clearly displays the alarm messages.
- In the event of a temperature alarm, the red flashing LED lighting has adjustable intensity.
- Engineering units that can be chosen on-screen: °C, °F, and K.
- Six huge 17mm (0.67") temperature digits.
- Temperature monitoring: a low temperature alert and a high temperature alarm are both programmable.
- The operator can alter the alarm values, or they can be password-protected.
- For high, low, or both combined temperature alarms, there is just one alarm output.
- In accordance with ATEX, IECEx, FM, and CSA C-US, intrinsic safety.
- Enclosures made of GRP, aluminum, or premium stainless steel.
- automatic EEPROM memory backup of configurations.
- Simple setup with readable alphanumeric text.
