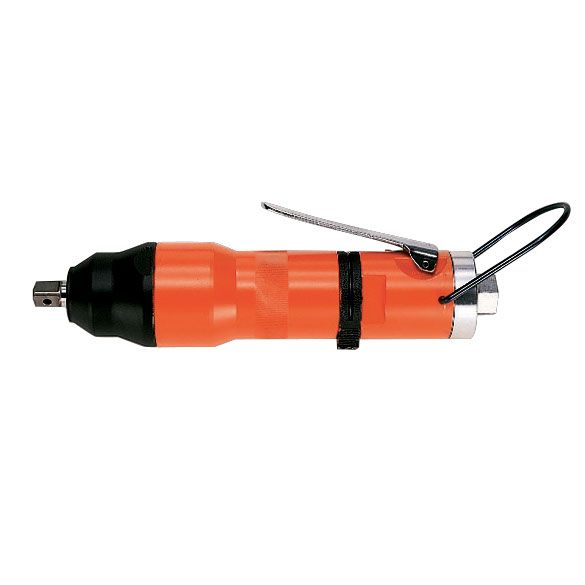

FUJI FW-44 | Impact Wrench | 3/8 in Square Drive, 6-12 Nm
In its impact wrench form, the FUJI FW-44 is a straight tool with a 3/8 in square drive and 6 to 12 Nm working torque. A 9-blade dual-chamber motor and oil-bath twin hammer clutch give high torque at low speed for reliable fastening. It connects through a 1/4 in PT or NPT inlet, with sound pressure of 86 dB(A) and vibration below 2.5 m/s².
Key features
- Reverse torque up to 20 Nm
- Free speed 5700 rpm
- Length 207 mm; weight 0.66 kg
- Air at load: 5.8 l/s (12 cfm)
- 6.3 mm minimum hose
- Specifications
| Part Number | FW-44 |
| Brand | FUJI |
| Product | Impact wrench |
| Output drive size (in) | 3/8 |
| Output drive type | Sq |
| Max working torque fwd | 12 Nm / 8.9 ft.lbf |
| Min working torque fwd | 6 Nm / 4.4 ft.lbf |
| Max torque reverse | 20 Nm / 14.8 ft.lbf |
| Free Speed | 5700 rpm |
| Weight | 0.66 kg / 1.46 lb |
| Impact mechanism | Twin hammer |
| Handle type | Straight handle |
| Air consumption at load | 5.8 l/s / 12 cfm |
| Air inlet thread size (in) | 1/4 |
