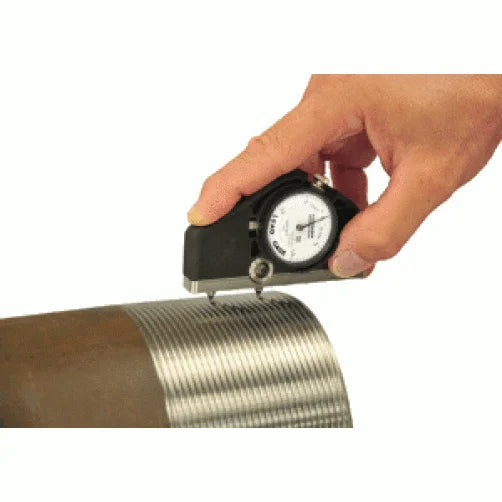

Gagemaker LG-6001 | 2-Point External Lead Gage | 0.0005" Resolution, ½" – 2" Thread Length

Part Number : Gagemaker LG-6001

With 0.0005" resolution and a ½" – 2" thread length range, the LG-6001 is a 2-point external lead gage. Two contact points and a sweeping motion let the LG-6001 measure lead on straight and tapered threads.

  • LG-6001: 0.0005" resolution, 0.100" indicator travel
  • LG-6001 contact point spacing 0.200", minimum bore 2.750"
  • 2 point contact on external threads, ½" – 2" thread length (LG-6001)
  • Interchangeable contact points on the LG-6001 suit a variety of thread forms (default set included; alternatives on request)
  • Set the LG-6001 to a nominal dimension on a lead setting standard (ANSI/API) first
Availability: in stock
Free Kuwait shipping available
For pricing, please contact our experts.
