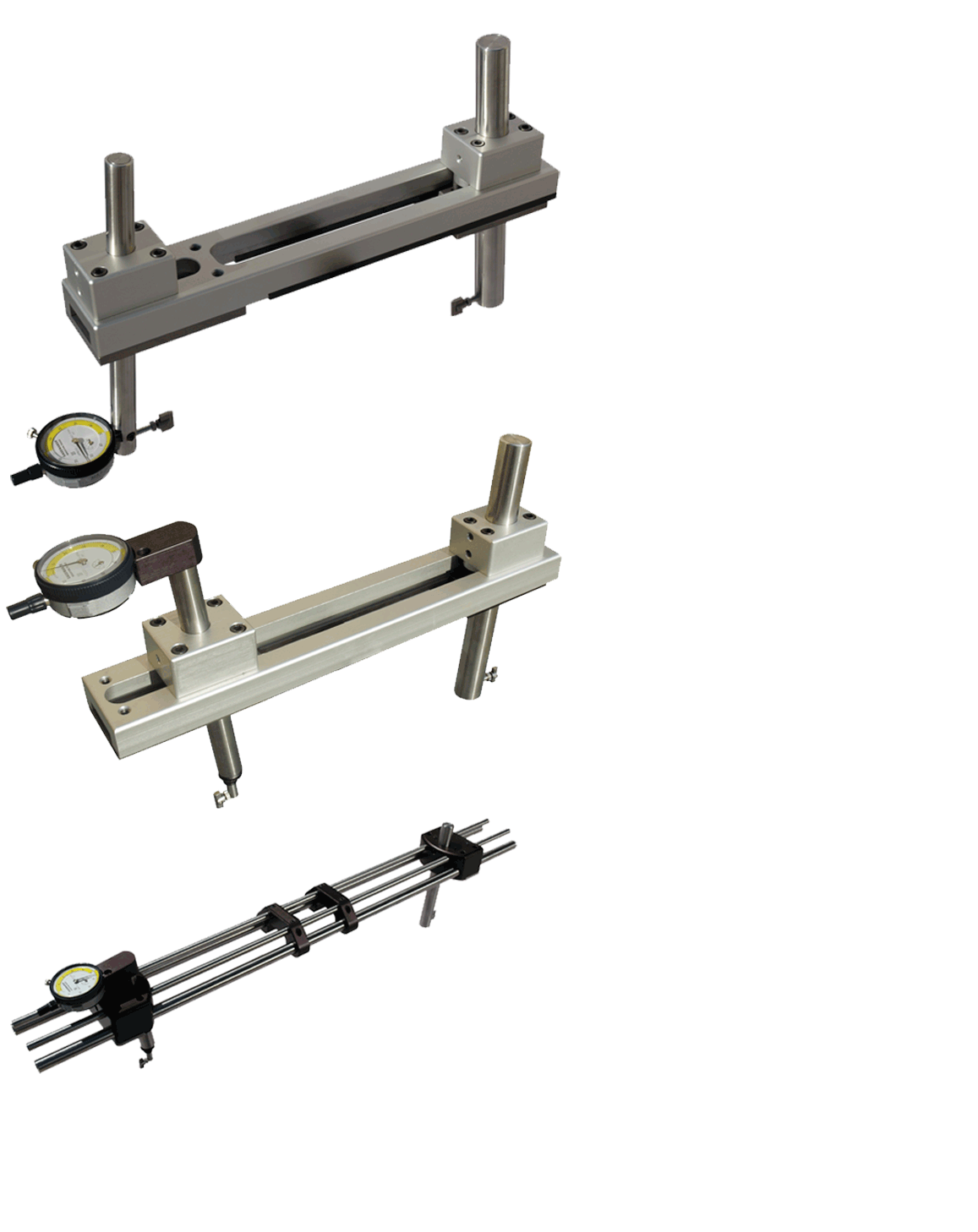

Gagemaker MRP-3503 | Solid Body External/Internal Crest Diameter Gage | 6¼” reach, Range 8⅝”–24”
Gagemaker MRP-3503: a 6¼” reach MRP® solid-body gage that handles both internal and external threads in the 8⅝”–24” range. Its job on tapered threaded connections is to show diameter and ovality variation quickly, letting one MRP-3503 do the work of many ring or plug gages.
- MRP-3503 reach 6¼”; internal range 8⅝”–24”; external range 8⅝”–24”
- Solid body build on the 6¼” reach MRP-3503
- MRP-3503 measures crest diameter, also called pitch diameter, of internal and external tapered threads
- Ovality and diameter changes in the 8⅝”–24” band are picked up by the MRP-3503
- MRP-3503 gage shoe sits on the thread crest, with variation shown on the indicator readout
- Specifications
- Features
- Downloads
| Part Number | MRP-3503 |
| Brand | Gagemaker |
| Gage Type | Solid Body External/Internal Crest Diameter Gage |
| Reach | 6¼” |
| Internal Range | 8⅝”–24” |
| External Range | 8⅝”–24” |
Solid Body External/Internal Crest Diameter Gage | 6¼”” reach | Range 8⅝” – 24”
Other models in this series
Click a row to open that product.
