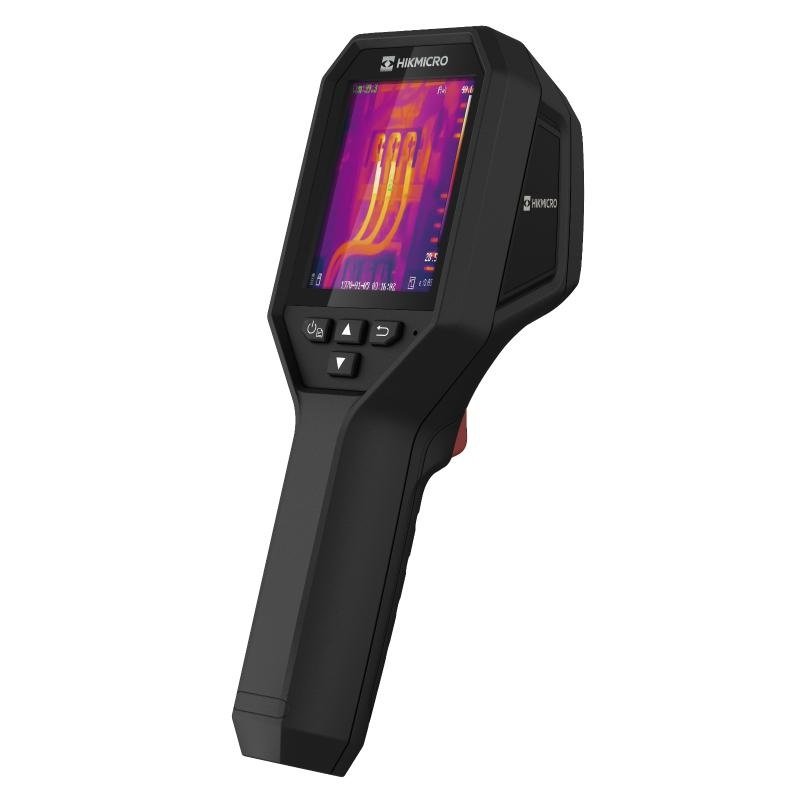

HIKMICRO B1L | Compact Thermal Imaging Camera | 160 × 120, -20 to 550 °C
As the entry model of this compact HIKMICRO line, the B1L uses a 160 × 120 thermal detector with a 17 µm pitch and measures temperatures from -20 °C to 550 °C. It is intended for spotting hidden problems in buildings, HVAC systems and vehicles.
Key features
- 160 × 120 thermal detector (19,200 pixels)
- -20 °C to 550 °C measurement range
- 3.5 mm F1.1 lens with 44.4° × 32.9° field of view
- Spatial resolution 4.85 mrad
- 25 Hz image frequency
- Specifications
- Features
- Downloads
| Part Number | HIKMICRO B1L |
| Brand | HIKMICRO |
| Field of View (FOV) | 32.9° × 44.4° |
| Focal Length | 3.5 mm (0.138 in) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| F-number | F1.1 |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Spatial Resolution (IFOV) | 4.85 mrad |
| Detector Pitch | 17 µm |
| Image Frequency | 25 Hz |
| Spectral Range | 7.5 to 14 µm |
| Temperature Range | -20 °C to 550 °C (-4 to 1022 °F) |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
- Enhanced Thermal Clarity with SuperIR
- High Image Quality
- 4 Images Modes
- Full-screen Precise and Wide Temperature Measurement
- Wi-Fi Connectivity
- Innovative Macro Mode
- High Temperature Alarm
- Fast Image Frequency
- 3.2" Color LCD
- HIKMICRO Analyzer Software
