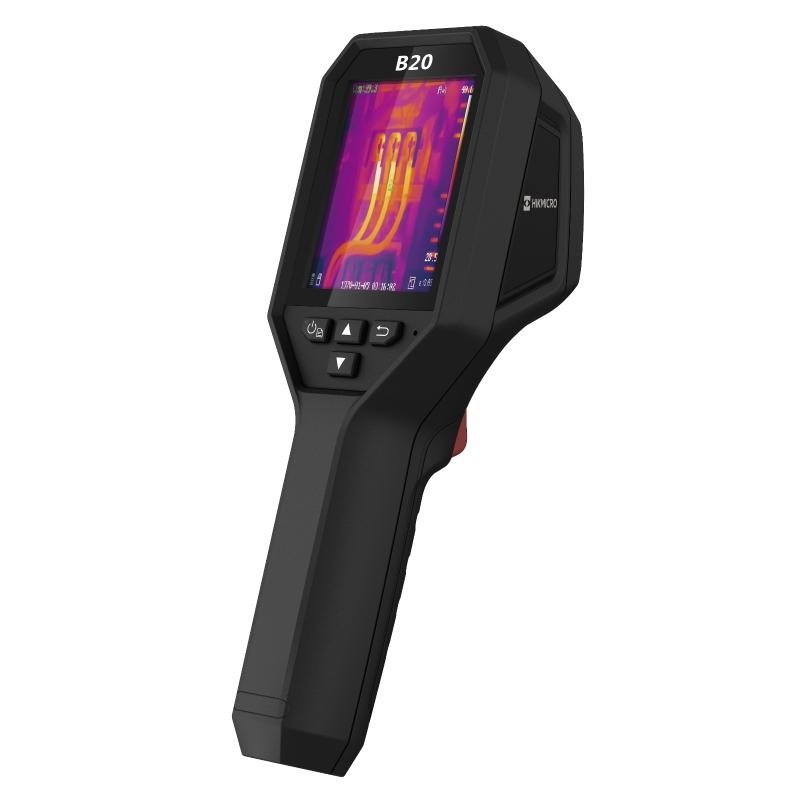

HIKMICRO B20 | Compact Thermal Imaging Camera | 256 × 192, -20 to 550 °C

Name: HIKMICRO B20 | Compact Thermal Imaging Camera | 256 × 192, -20 to 550 °C
Brand: HIKMICRO
SKU: HIKMICRO B20
Price: 2326.00 AED
Availability: OutOfStock

Part Number : HIKMICRO B20

The HIKMICRO B20 steps up to a 256 × 192 thermal detector alongside a 2MP visual camera, with a -20 °C to 550 °C measurement span. Its 50° × 37.2° field of view covers wide scenes in building, HVAC and automotive checks.

Key features

256 × 192 thermal resolution (49,152 pixels)
2MP optical camera
Measures -20 °C to 550 °C
Wide 50° × 37.2° field of view, 3.6 mm lens
NETD below 40 mK, 3.3 mrad IFOV

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	HIKMICRO B20
Brand	HIKMICRO
Detector Pitch	12 µm
F-number	F1.0
Field of View (FOV)	37.2° × 50.0°
Focal Length	3.6 mm
Image Frequency	25 Hz
IR Resolution	256 × 192 (49,152 pixels)
Minimum Focus Distance	0.3 m (0.98 ft)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Spatial Resolution (IFOV)	3.3 mrad
Spectral range	7.5 to 14 µm
Temperature Range	-20 °C to 550 °C

Enhanced Thermal Clarity with SuperIR
High Image Quality
4 Images Modes
Full-screen Precise and Wide Temperature Measurement
Wi-Fi Connectivity
Innovative Macro Mode
High Temperature Alarm
Fast Image Frequency
3.2" Color LCD
HIKMICRO Analyzer Software

HIKMICRO B20 | Compact Thermal Imaging Camera | 256 × 192, -20 to 550 °C

DOWNLOAD CATALOG

HIKMICRO B20 | Compact Thermal Imaging Camera | 256 × 192, -20 to 550 °C

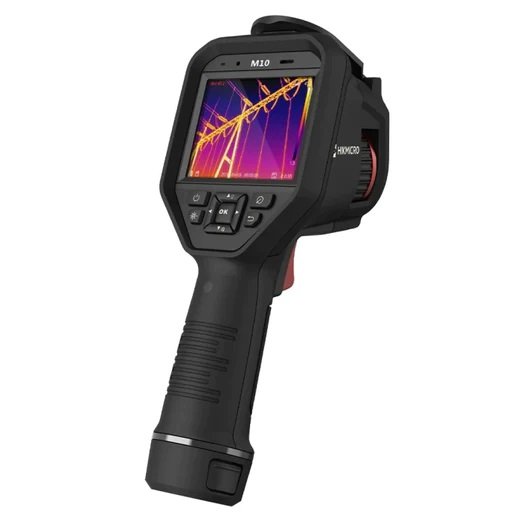

HIKMICRO M10 | Handheld Thermography Camera | 160 × 120, 6.2 mm lens

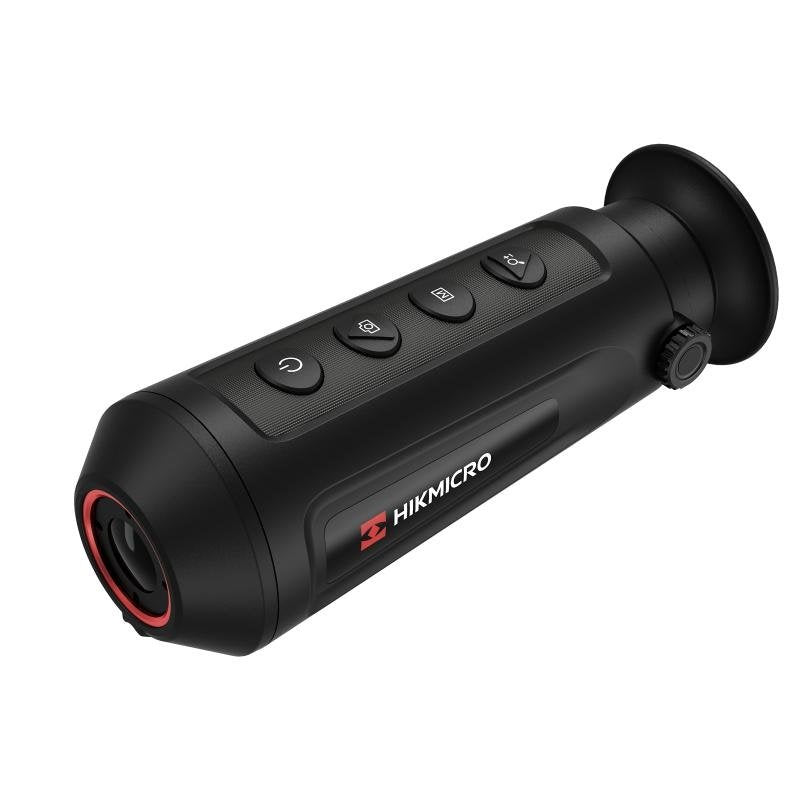

HIKMICRO LYNX LC06 | Handheld Thermal Monocular | 160 × 120, 6.2 mm, 250 m

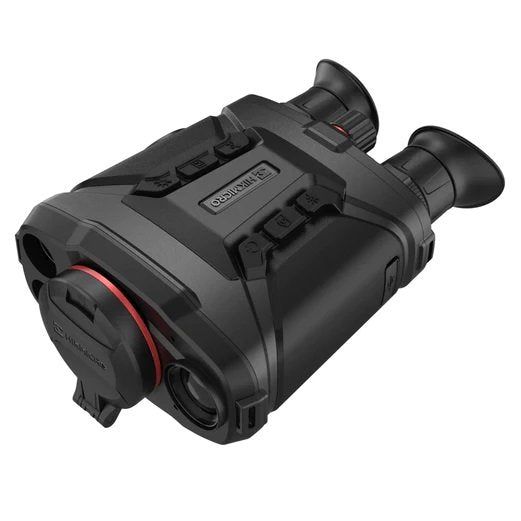

HIKMICRO RAPTOR RQ50LN | Thermal and Night Vision Binocular | 640 × 512, 50 mm, LRF 1000 m

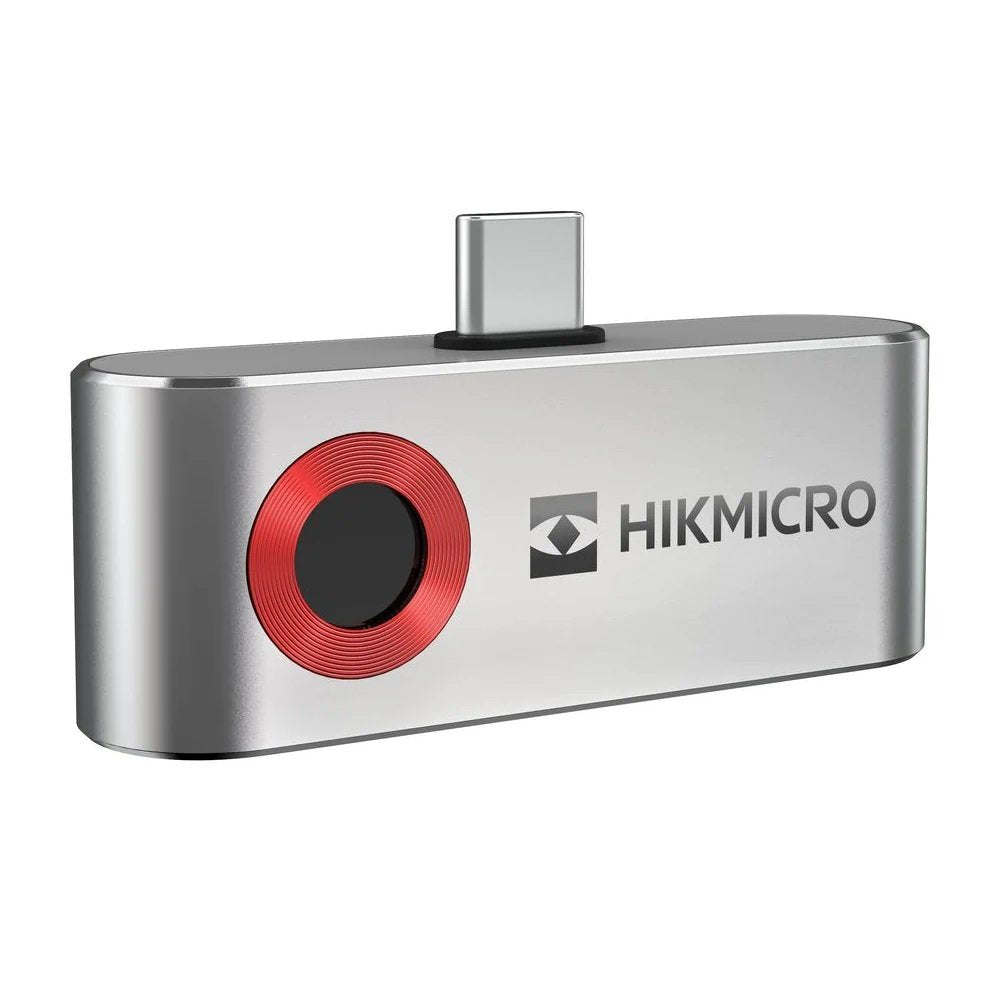

HIKMICRO Mini | Smartphone Thermal Module | 160 × 120, 5 to 100 °C

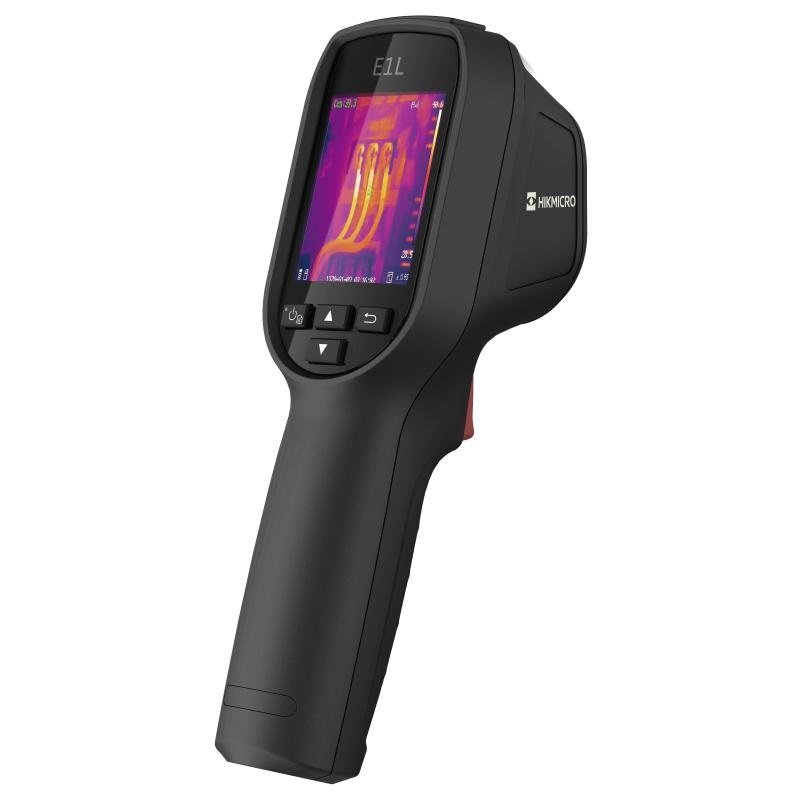

HIKMICRO E1L | Handheld Thermography Camera | 160 × 120, 3.1 mm lens

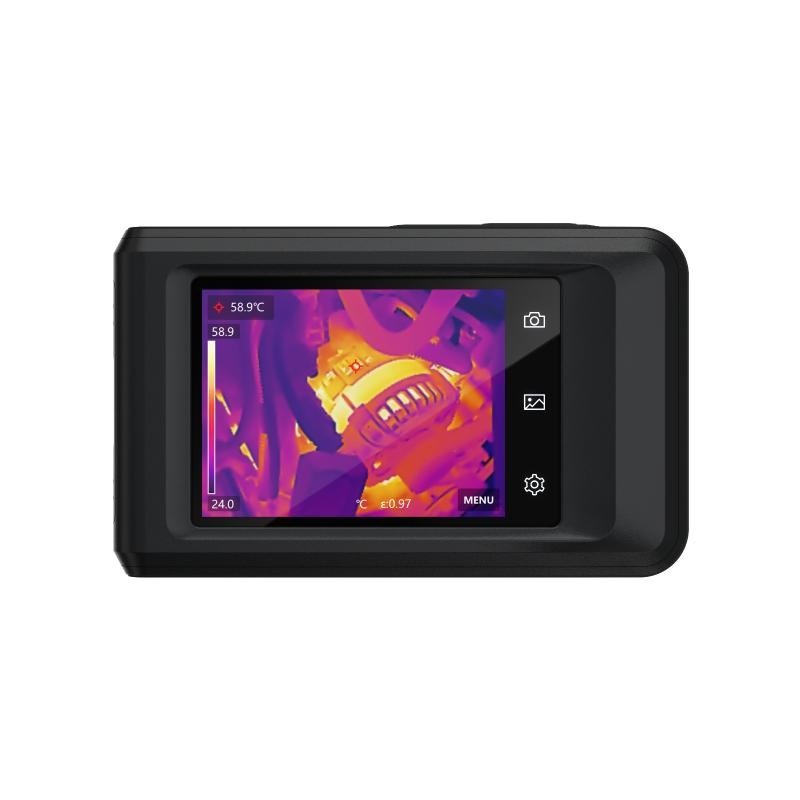

HIKMICRO Pocket2 | Pocket Thermography Camera | 256 × 192, -20 to 400 °C
