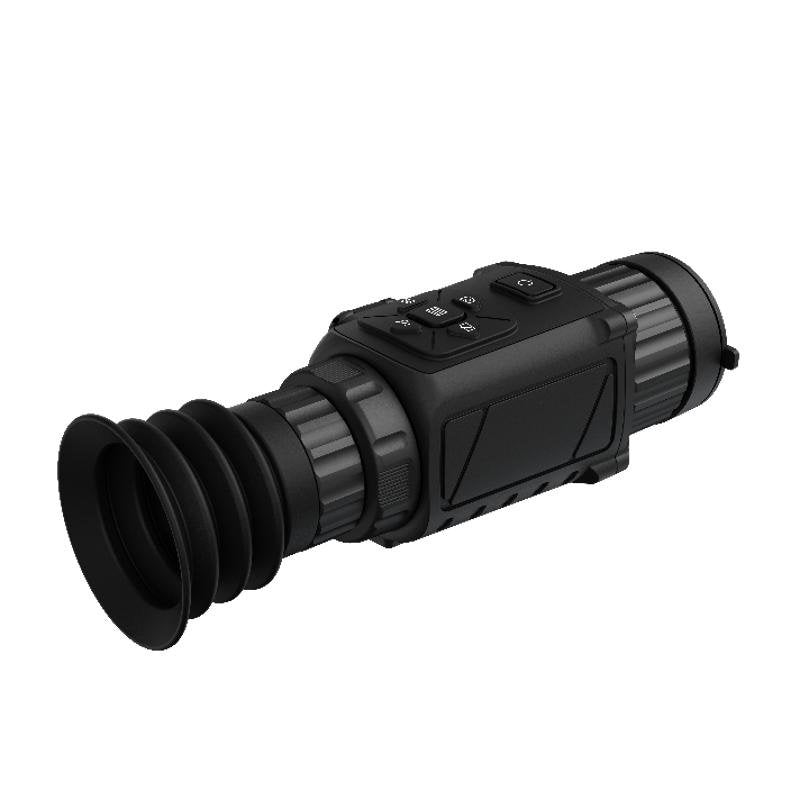

HIKMICRO THUNDER Pro TE19 | Thermal Image Scope | 256 × 192, 19 mm, 900 m
The HIKMICRO THUNDER Pro TE19 is a thermal image scope with a 256 × 192 detector, a 19 mm lens and a 1024 × 768 OLED panel. It produces clear images through darkness, fog, smoke, dust, rain and snow, with a 900 m detection range for patrol and hunting use.
Key features
- 256 × 192 VOx detector
- 19 mm lens, 9.24° × 7.08° field of view
- 900 m detection
- 0.63 mrad spatial resolution
- 25 Hz frame rate
- Specifications
- Features
- Downloads
| Part Number | THUNDER Pro TE19 |
| Brand | HIKMICRO |
| Detection | 900 m |
| Field of View (FOV) | 9.24° × 7.08° |
| Focal Length | 19 mm |
| Frame Rate | 25 Hz |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 (49,152 pixels) |
| NETD | Less than 35 mK (@25°C),F#=1.0 |
| Pixel Interval | 12 µm |
| Response waveband | 8 µm to 14 µm |
| Spatial Resolution (IFOV) | 0.63 mrad |
- Advanced Imaging Sensor
- Long Detection Range
- High Image Quality
- Large OLED Display
- Optional Reticle Types
- Make zeroing easier
- Replaceable Batteries
- High Shock Resistance
- IP67 Waterproof Rated
