Hioki 3246-60 Pencil HiTester

Name: Hioki 3246-60 Pencil HiTester
Brand: Hioki
SKU: 3246-60
Availability: OutOfStock

Part Number : 3246-60

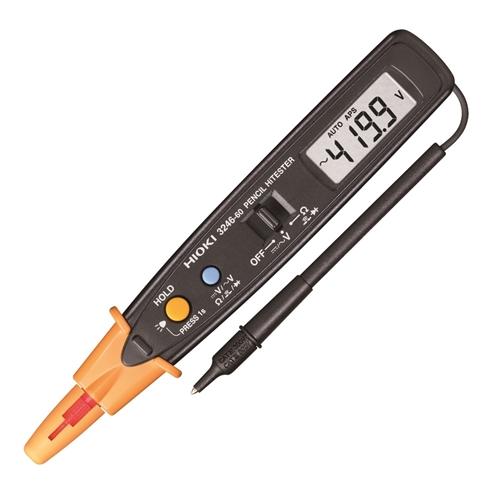

For general electrical maintenance and testing, the 3246-60 is a pencil-style digital multimeter with a bright LED at the tip for a clear view of the measurement target. This pencil-style tester is small and has data-hold and auto-range features for easy electrical and electronic circuit measurement.

Availability: Sold out

Specifications
Features
Downloads

Measurement Functions	Measures AC/DC voltage, resistance, and includes a continuity buzzer and diode check.
Voltage Range	DC Voltage from 419.9 mV to 600 V (5 ranges) and AC Voltage from 4.199 V to 600 V (4 ranges).
Resistance Range	419.9 Ω to 41.99 MΩ across 6 ranges.
Safety Rating	Certified for CAT IV 300 V and CAT III 600 V when used with the included tip sleeves.
Display	Digital LCD with a maximum of 4,199 digits and a sampling rate of 2.5 times per second.
Power	: Powered by a single CR2032 coin-type lithium battery, providing approximately 150 hours of continuous DC voltage measurement.
