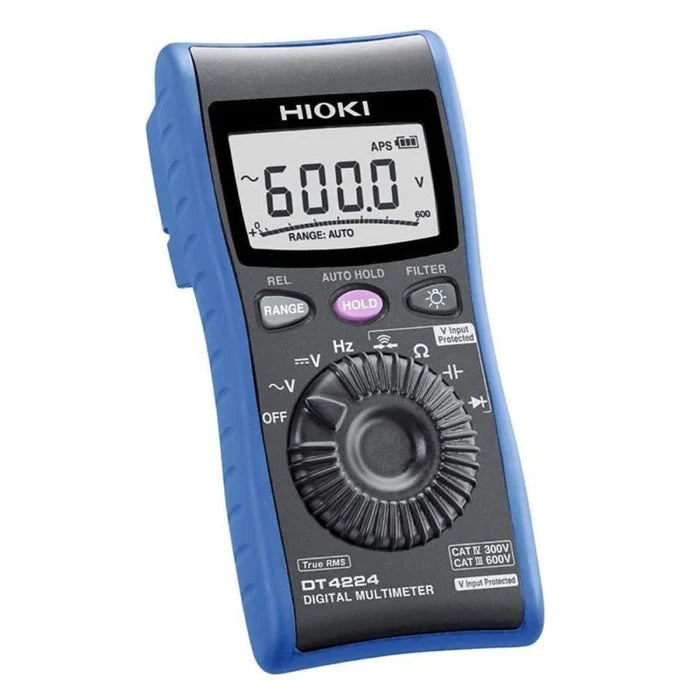

Hioki DT4224 Digital Multimeter

Name: Hioki DT4224 Digital Multimeter
Brand: Hioki
SKU: DT4224
Availability: OutOfStock

Part Number : DT4224

With its extremely quick response time and safety features, the Hioki DT4200 Digital Multimeter Series offers a wide range of meters, from professional to industrial to pocket meters, elevating electrical testing to a new level. Ideal for all general electrical tasks, the Hioki DT4224 is a pocket-sized digital multimeter with an inventive circuit-breaker false trip prevention function to improve testing safety, capacitance, and diode testing functions.

Availability: in stock

Specifications
Features
Downloads

Safety Functionality	Features a world-first voltage input protection that prevents circuit breakers from tripping even if voltage is mistakenly applied in resistance mode.
DC Voltage	600.0 mV to 600.0 V with ±0.5% basic accuracy.
AC Voltage	6.000 V to 600.0 V (True RMS), 40 Hz to 1 kHz.
Additional	Resistance (up to 60.00 MΩ), Capacitance (up to 10.00 mF), and Frequency (up to 9.999 kHz).
Durability	Robust design capable of withstanding a 1-meter drop onto concrete.
Operating Conditions	Wide temperature range from -10°C to 65°C (14°F to 149°F).
Display	: 6000-count digital LCD with a bar graph and backlight.

Test leads conveniently wrap around the back
Broad -10°C (14°F) to 65°C (149°F) operating temperature range
Robust design capable of withstanding a drop from a height of 1m
Achieving a high level of safety in a compact body and lightweight design
±0.5% DC V basic accuracy, wide 40Hz to 1kHz AC V frequency characteristics
Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
More convenient function: Resistance, Capacitance measurement, and diode testing
