ifm EVC010, , EVC Series M12 Cable for Use with Sensor, CE Certified Standard

Part Number : EVC010

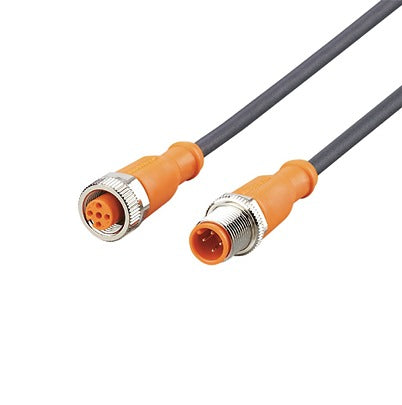

The 4-pole M12 connection cable EVC010 from ifm with straight M12 socket and straight M12 plug has a 0.3 m PUR cable. The M12 coupling nut from diecast zinc is secured against shock and vibration due to saw tooth contoured vibration protection. Besides the high protection rating IP67/IP68/IP69K and the gold-plated contacts the silicone and halogen-free EVC010 connection cable is distinguished by its resistance to oils and lubricants. The EVC010 connection cable is therefore ideal for applications in factory automation, machine building and hydraulics.

Availability: in stock

Detailed Description
Specifications
Features
Downloads

The ifm electronic Connection Cable operates at voltages below 250 V AC and 300 V DC with a protection class II rating. It supports a maximum current load of 4 A. The cable is suitable for ambient temperatures ranging from -25°C to 90°C, with a cULus temperature limit of 75°C. For moving applications, the ambient temperature range is also -25°C to 90°C, with the same cULus limit. The storage temperature ranges from -25°C to 55°C.

Free from silicone
Halogen-free
Gold-plated contacts
Drag chain suitability
