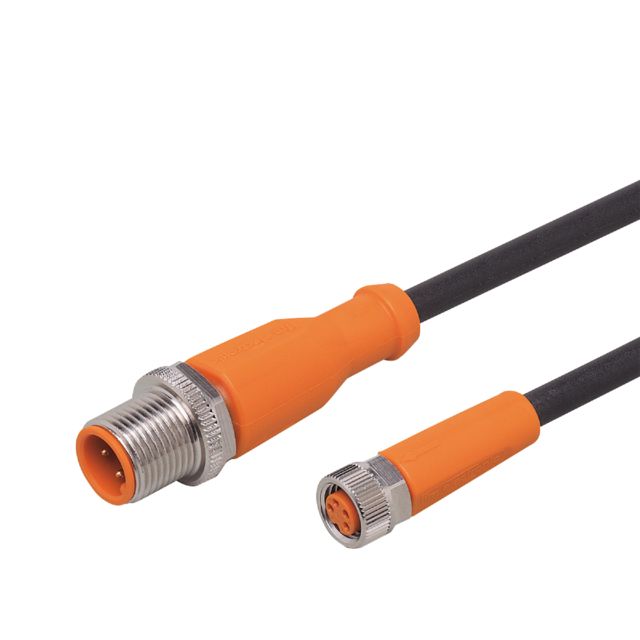

ifm EVC220, Straight Male 1 way M12 to Straight Female 1 way M8 Actuator/Sensor Cable, 300mm

Name: ifm EVC220, Straight Male 1 way M12 to Straight Female 1 way M8 Actuator/Sensor Cable, 300mm
Brand: ifm
SKU: EVC220
Availability: OutOfStock

Part Number : EVC220

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Connection Cable is expertly designed to enhance connectivity across various applications. With its robust construction and high quality materials, this model ensures durability and reliable performance even in challenging environments. The cable boasts a flexible design, making it suitable for use in drag chains and able to withstand rigorous bending cycles.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec

Brand	ifm
Series	EVC
Cross Sectional Area	0.34 mm²
Number of Cores	3
Sheath Material	Polyurethane PUR
Length	300mm
Sheath Colour	Black
Connector 1	M12
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	1
Connector 1 Gender	Male
Connector 2 Number of Contacts	1
Connector 2 Gender	Female
Connector 2 Orientation	Straight
Connector 2	M8
