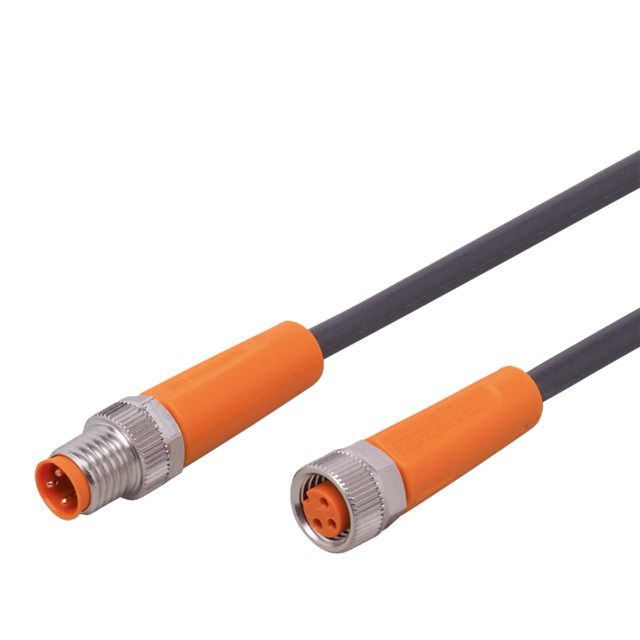

ifm EVC518, Straight Male 3 way M8 to Straight Female 3 way M8 Communication Cable, 15m

Name: ifm EVC518, Straight Male 3 way M8 to Straight Female 3 way M8 Communication Cable, 15m
Brand: ifm
SKU: EVC518
Availability: OutOfStock

Part Number : EVC518

Availability: Sold out

Detailed Description
Specifications

The ifm electronic connection cable is expertly designed for reliable performance in demanding environments. With robust construction featuring a TPU moulded body and gold-plated contacts, it ensures optimal conductivity and durability. Specially crafted to be free from silicone and halogen, the cable meets stringent industry standards, making it ideal for applications in automated systems. Its wide temperature range of -25 to 90 degrees Celsius and impressive protection ratings, including IP65 to IP69K, provide assurance against dust and moisture ingress. The product supports flexibility with a high bending cycle capacity and torsional strain tolerance, making it suitable for dynamic applications. Whether in stationary or moving setups, this cable promises consistent performance, underlining its value for industrial usage.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mec

Brand	ifm
Series	EVC
Cross Sectional Area	0.25 mm²
Number of Cores	3
Sheath Material	Polyurethane PUR
Length	15m
Sheath Colour	Black
Connector 1	M8
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	3
Connector 1 Gender	Male
Connector 2 Number of Contacts	3
Connector 2 Orientation	Straight
Connector 2 Gender	Female
Connector 2	M8
